Subsequent Work

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

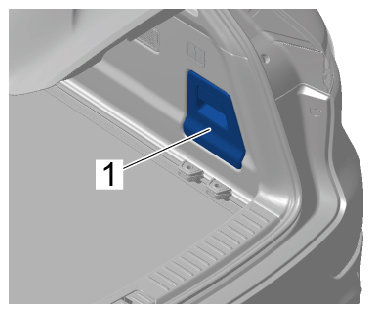

  1. Install side trim panel flap -1-  in rear luggage compartment at the right.
    G15238484Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Side flap

  2. Install side trim panel for rear luggage compartment at the left.

    > 700319 REMOVING AND INSTALLING SIDE TRIM PANEL FOR REAR LUGGAGE COMPARTMENT

  3. Only without Sport Design:  Install rear wheel covers.

    > 664519 REMOVING AND INSTALLING REAR WHEEL COVER

  4. Only for Sport Design:  Install rear wheel cover (Sport Design).

    > 664555 REPLACING REAR WHEEL COVER (SPORT DESIGN)

  5. Install rear underbody covers at the sides.

    >  WM, 519419 REMOVING AND INSTALLING COVER FOR REAR UNDERBODY

  6. On vehicles with Lane Change Assist (I-no. 7Y1, 7Y2, 7Y3 or 7Y8)

    Calibrate Lane Change Assist control unit.

    >  WM, 917055 REPLACE LANE CHANGE ASSIST CONTROL UNIT
