Subsequent Work

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

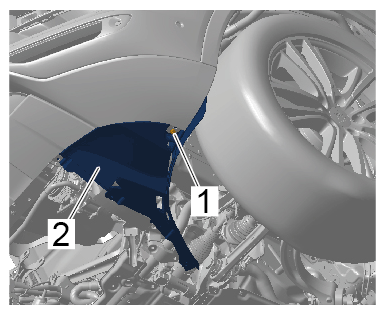

  1. Position the brake -2-  air duct, screw in the fastening screw -1-  and tighten it to > Tightening torque 3 Nm (2 ftlb.)  .
    G15238445Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screws

  2. Only without Sport Design:  Install front wheel covers.

    >  WM, 661919 REMOVING AND INSTALLING FRONT WHEEL COVER

  3. Install wheel housing liner front in the front bumper area.

    >  WM, 505619 REMOVING AND INSTALLING FRONT WHEEL HOUSING LINER

  4. Vehicles without power unit guard  Fasten front cover in the area of the front bumper and air duct brake.

    >  WM, 519219 REMOVING AND INSTALLING COVER FOR FRONT UNDERBODY

  5. Vehicles with power unit guard  Install power unit guard.

    > Refer to appropriate Engine article

  6. Installing the cover on lock carrier.

    >  WM, 703919 REMOVING AND INSTALLING COVER FOR FRONT LOCK SUPPORT

  7. Secure ground strap for battery.

    >  WM, 978509 - LOOSENING AND SECURING GROUND STRAP FOR BATTERY

  8. For vehicles with front assistance systems:

    Calibrate infrared camera.

    >  WM, 908019 REMOVING AND INSTALLING INFRARED CAMERA

    Calibrate front corner radar.

    >  WM, 916625 CALIBRATING FRONT CORNER RADAR

    Calibrate Surround View camera.

    >  WM, 917225 CALIBRATING SURROUND VIEW CAMERA
