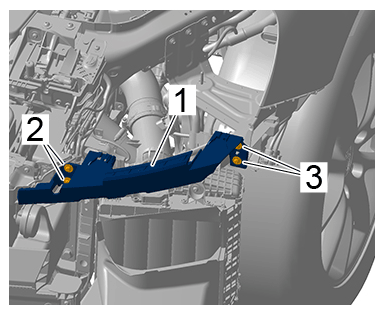

| Headlight mounting to inner front-end |
Item 2 |
Tightening torque |
3 Nm (2 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Headlight mounting |
|
|
|
|
|
| Headlight mounting to outer front-end |
Item 3 |
Tightening torque |
3 Nm (2 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Headlight mounting |
|
|
|
|
|
