Removing Front Air Guide

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

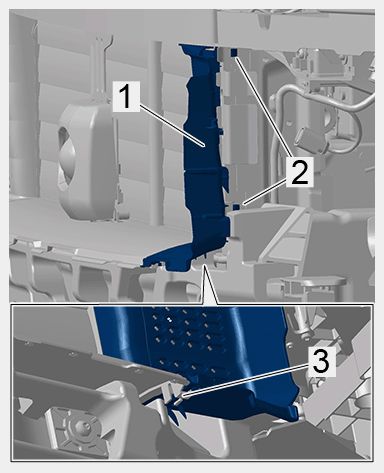

Side part of front air guide

1. 1.1  Unclip top clips -2-  and bottom clip -3-  on side part of front air guide -1-  .
2. 1.2  Remove side part of front air guide -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sound absorber on bumper

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

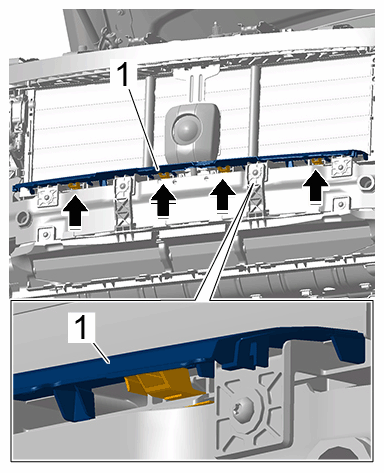

Lower part of air guide

1. 3.1  Unclip lower part of air guide -1-  using a suitable tool -Arrows-  .
2. 3.2  Remove lower part of air guide -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

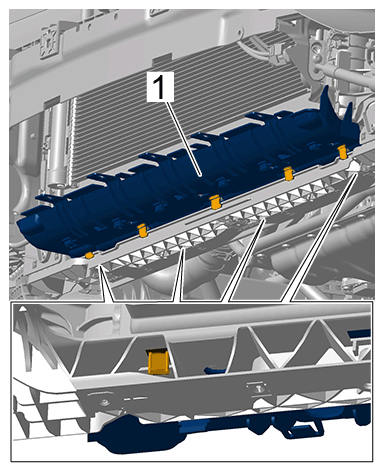

Lower air guide

1. 4.1  Unclip lower air guide -1-  in the area marked in yellow.
2. 4.2  Remove lower air guide -1-  .
