Removing Control Unit For Fuel Pump

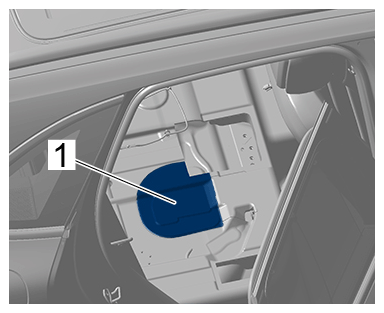

  1. Fold over carpet -1-  at the cut-out.
    G15258849Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Carpet

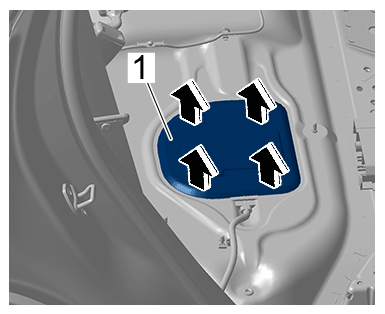

  2. Unclip cover -1-  in direction of -Arrows-  and lift it up until electric plug connection for the fuel pump control unit is accessible.
    G15258850Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover

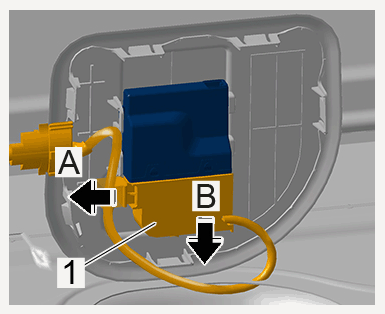

  3. Release electric plug connection -1- (-arrow A-)  and disconnect it -arrow B-  .
    G15258851Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

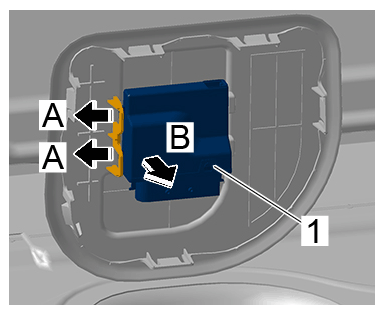

  4. Unclip fuel pump control unit -1- (-arrows A-)  and remove it -arrow B-  .
    G15258852Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fuel pump control unit
