Removing Leakage Diagnosis Module

Information

The leakage diagnosis unit is only installed on USA vehicles.

1. Remove leakage diagnosis module -1-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

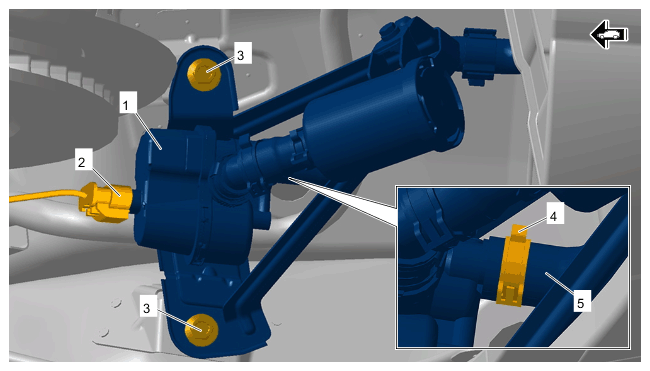

   Leakage diagnosis module on carbon canister

   1. 1.1  Release and disconnect electric plug connection -2-  .
   2. 1.2  Unscrew screws for leakage diagnosis module -3-  and position leakage diagnosis module -1-  so that the spring band clamp -4-  on the line -5-  is accessible.
   3. 1.3  Loosen spring band clamp -4-  and pull off line -5-  .
   4. 1.4  Remove leakage diagnosis module -1-
   5. 1.5  Close off line connections with stoppers.
