Tools And Materials: Notes

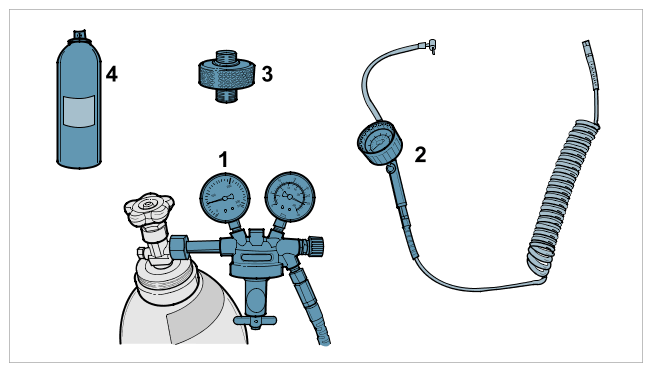

G15258736

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tools for leak test

1	Commercially available pressure gauge unit (pressure reducer)
2	> VAS 6231 - Air-Spring Strut Filling Unit (connection between pressure reducer and adapter)
3	> V.A.G 1318 - K-Jetronic Tester (for fitting on the fuel supply line)
4	Commercially available leak-locating spray

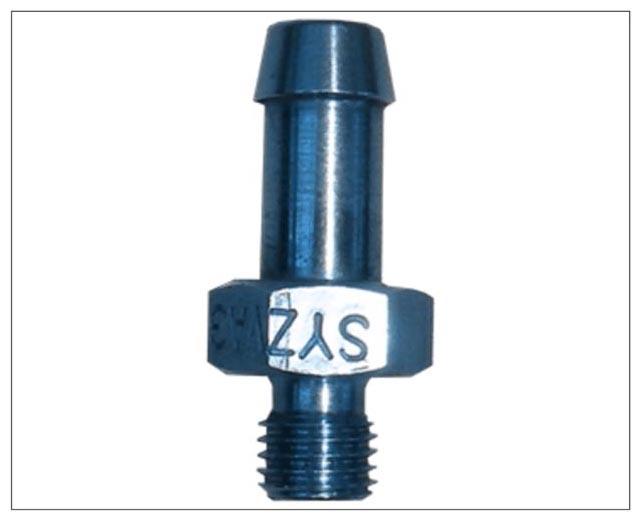

G15258737

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adapter VAG 1318/11

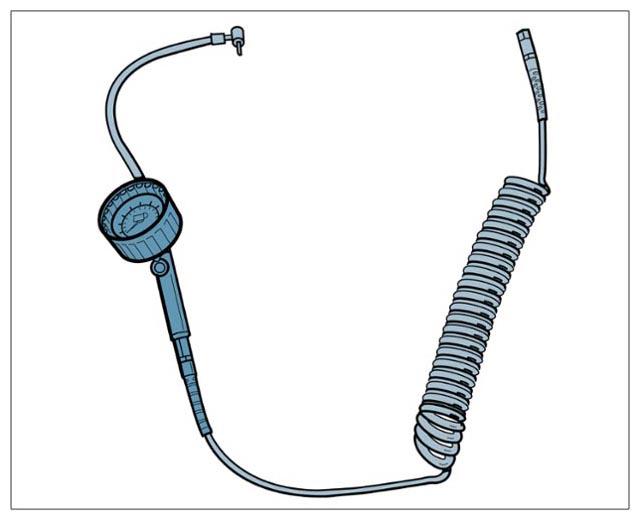

G15258738

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Filling unit VAS 6231

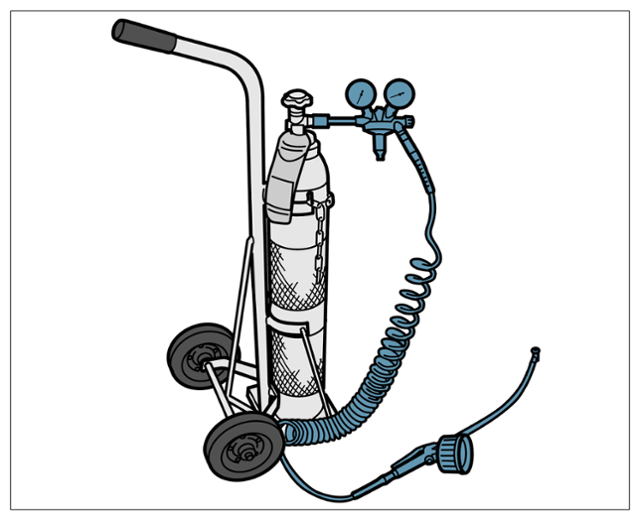

G15258739

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Test equipment setup
