Subsequent Work

  1. Remove all test tools.
  2. Connect supply line

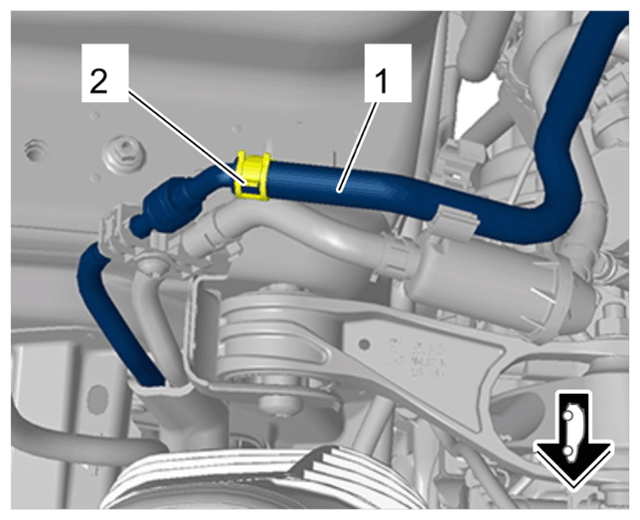

    G15258742Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Supply line - engine compartment connection point (shown on the Macan as an example)

    1. 2.1  Connect connection point for supply line -1-
    2. 2.2  Fasten spring band clamp -2-  using > VAS 6890 - spring band clamp pliers.
  3. Connect vehicle electrical system battery.

    > 270619 REMOVING AND INSTALLING VEHICLE ELECTRICAL SYSTEM BATTERY

  4. Install engine cover (design cover).

    > WM, 108319 REMOVING AND INSTALLING ENGINE COVER (DESIGN COVER) (V8 BITURBO)
