Removing Control Arm

  1. Remove control arm -1-  .

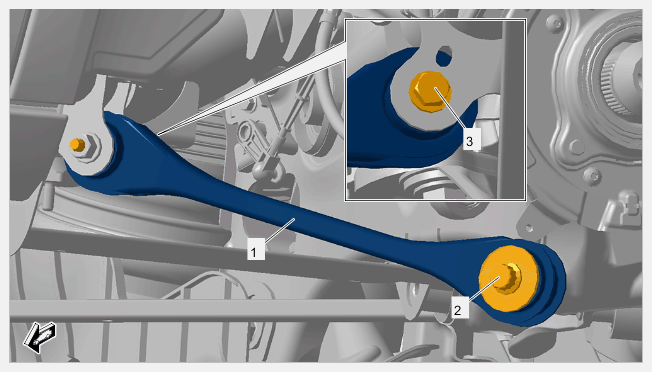

    G15259777Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear-axle control arm

    1. 1.1 Unscrew screw securing control arm to wheel bearing housing -2-  .
    2. 1.2 Unscrew screw securing control arm to rear axle housing -3-  .
    3. 1.3 Remove control arm -1-  .
