Removing Trailing Arm - Vehicles Without Air Suspension

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

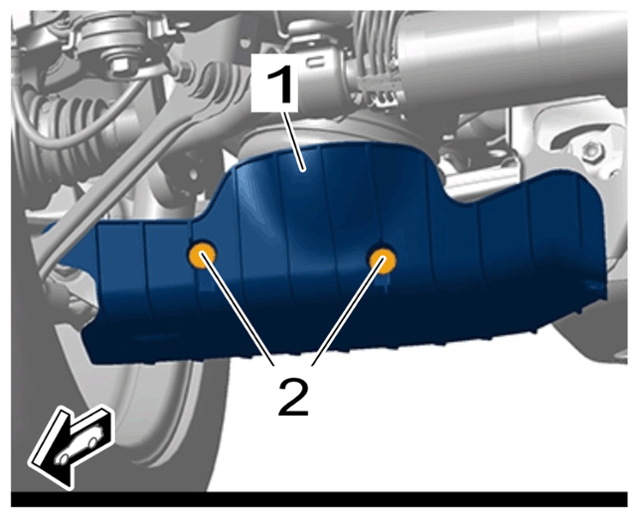

Rear axle trim panel

1. 1.1 Remove clips -2-  .
   1. 1.1.1 Carefully release and remove locating pins (without force).

      If the locating pin cannot be removed very easily, you can very carefully tap out the locating pin from the back using a suitable pin driver and a small hammer.

      Replace damaged clips.

2. 1.2 Remove rear axle trim panel -1-  by pulling it downwards.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

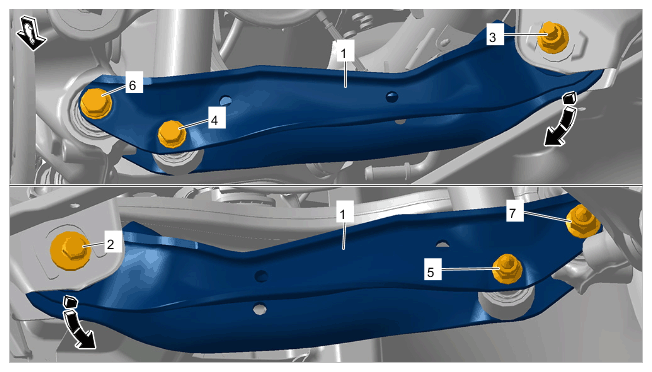

Trailing arm - vehicles without air suspension

1. 2.1 Lift wheel suspension using lifting equipment (e.g. > VAS 6931 - engine and gearbox jack  ) so that the trailing arm screws can be loosened.
2. 2.2 To make adjustment easier following installation: Mark the position of the eccentric threaded joint.
3. 2.3 Unscrew screw securing trailing arm to rear axle housing -2-  and counter at the nut -3-  at the same time.
4. 2.4 Unscrew screw securing shock absorber to trailing arm -4-  and counter at the nut -5-  at the same time.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Trailing arm - vehicles without air suspension

1. 3.1 Unscrew screw securing trailing arm to wheel bearing housing -6-  and counter at the nut -6-  at the same time.
2. 3.2 Guide trailing arm -1-  down out of the rear axle housing and remove it.
