Removing Brake Disc Rear

NOTIFICATION

Removal of brake calliper

• Paint defects on brake calliper
  1. → Proceed with care when setting back the brake pads.
  2. → Protect the paintwork on the brake calliper from damage using a suitable cloth.

1. Select brake pad change mode using PIWIS Tester.
   1. 1.1 Select → 'Brake electronics (PSM, incl. parking brake)'  in the 'Control unit overview'  and press F12 to confirm your selection.
   2. 1.2 Select 'Drive links/checks' → `Start brake pad change mode'  and start the procedure.
2. Removing the brake disc.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

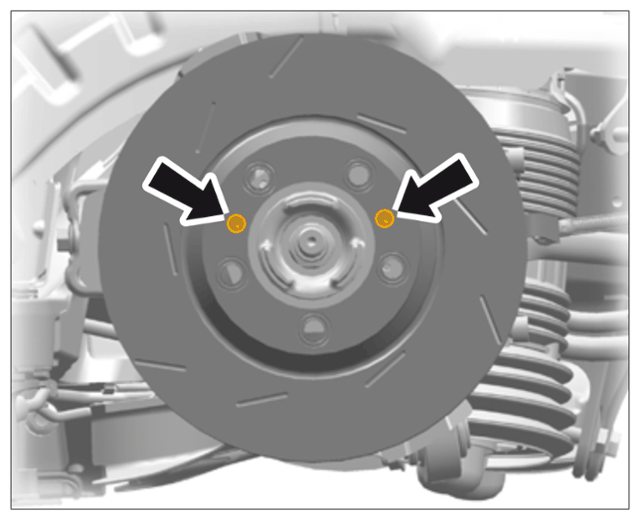

   Brake disc rear

   1. 2.1 Unscrew screws on brake disc -Arrows-  .
   2. 2.2 Removing brake disc.
