Removing Rear Pccb Brake Pads

NOTIFICATION

Removing/fitting wheels

• Risk of damage to (ceramic) brake discs
  1. → Carefully guide the wheel towards the wheel hub, thereby preventing any heavy impact on the (ceramic) brake disc.

Information

• The core of the warning contact line must not be exposed! Worn insulation is not important!
• If necessary, remove a little brake fluid from the reservoir by suction in order to prevent an overflow when the disc brake pads are pushed back.

Information

Protect the paintwork on the brake calliper from damage using a suitable cloth.

1. Have a transmission jack ready for the brake calliper.
2. Remove brake calliper and place it on the prepared transmission jack.
3. Remove brake pads -2-  from brake calliper -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

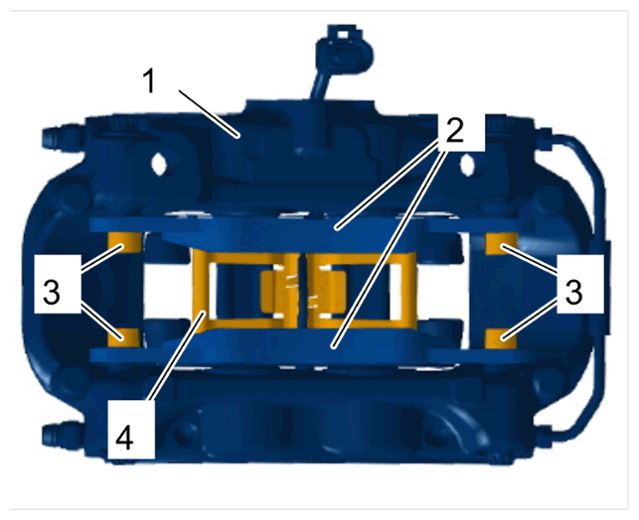

   Rear brake calliper

   1. 3.1 > T10145 - Piston resetting appliance  must be inserted between the brake pads -2-  .
   2. 3.2 Press the brake pistons back slowly and evenly. Make sure not to damage the dust boots on the brake pistons.
   3. 3.3 > T10145 - Piston resetting appliance  must now be removed.
   4. 3.4 Insert a suitable tool between the brake pads -2-  and brake calliper -1-  .
   5. 3.5 Carefully loosen the brake pads -2-  from the brake calliper -1-  by turning the tool slightly. Make sure not to damage the dust boots on the brake pistons.
   6. 3.6 Remove brake pads -2-  from pad retaining pins -3-  .
   7. 3.7 Remove pad retaining clips -4-  .
