Removing Mounting Saddle

> 477019 REMOVING AND INSTALLING BRAKE BOOSTER - section on "Removing".

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

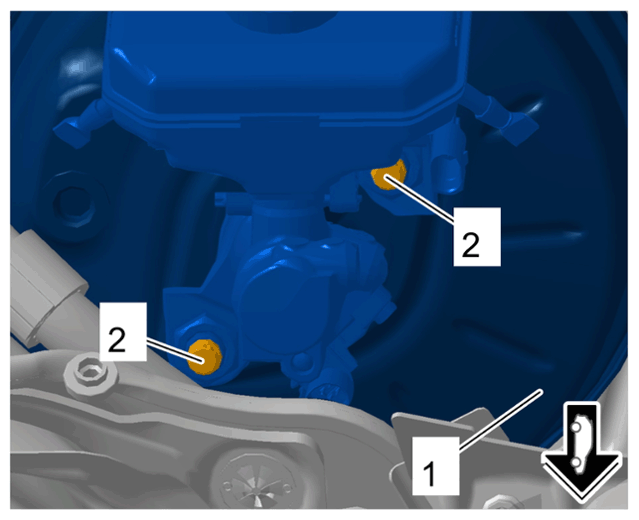

Screws for brake booster

1. 1.1 Unscrew screws for brake booster -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for accelerator pedal

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

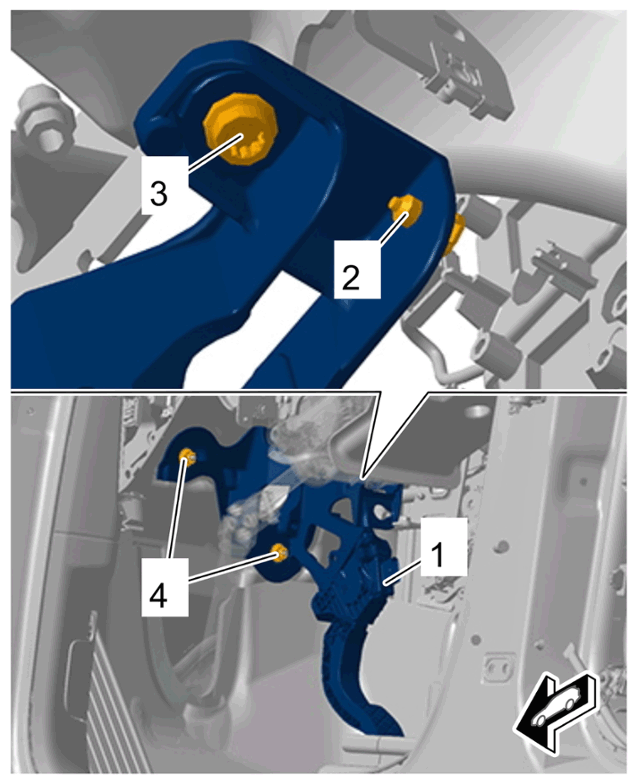

Bearing block

1. 3.1 Unclip clip -2-  .
2. 3.2 Unscrew screw -3-  .
3. 3.3 Unscrew nuts -4-  .
4. 3.4 Remove mounting saddle -1-  .
