Subsequent Work: Notes
WARNING: This page is about a different variant/trim than selected.
- Install deflection roller for V-belt (air-conditioning compressor) -2-
.
- 1.1

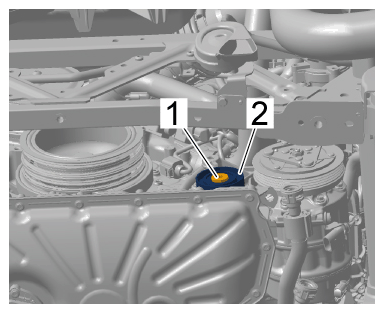

Fit deflection roller for V-belt (air-conditioning compressor) -2-
and screw in and tighten new
screw -1-
. > Tightening torque 25 Nm (19 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Deflection roller for V-belt (air-conditioning compressor)
- 1.2

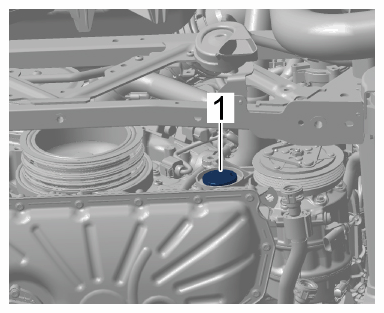

Install cover on deflection roller -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Deflection roller cover
- Install belt tensioner (air-conditioning compressor).
> 137319 REMOVING AND INSTALLING BELT TENSIONER (AIR-CONDITIONING COMPRESSOR)
