Preliminary Work

1. Remove belt tensioner (air-conditioning compressor).

   > 137319 REMOVING AND INSTALLING BELT TENSIONER (AIR-CONDITIONING COMPRESSOR)

2. Remove deflection roller for V-belt (air-conditioning compressor).

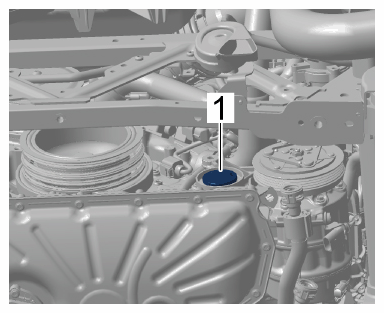

   1. 2.1  Unclip cover on deflection roller -1-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Deflection roller cover

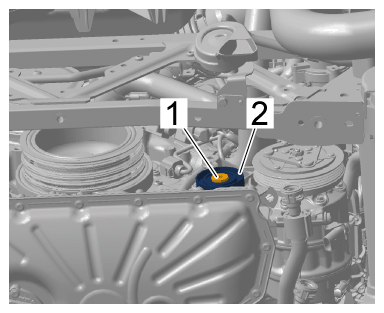

   2. 2.2  Unscrew screw -1-  and remove deflection roller for V-belt (air-conditioning compressor) -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Deflection roller for V-belt (air-conditioning compressor)

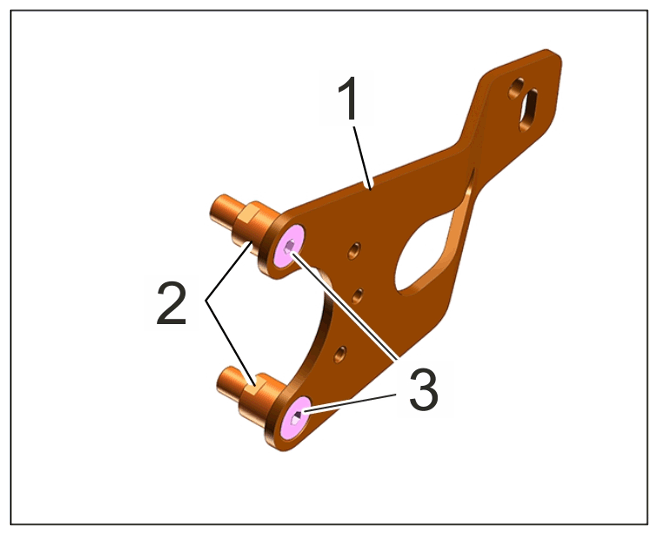

3. Prepare tool > T40330 - Brace  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tool T40330

1. 3.1  Fit adapter T40330/2 -2-  on brace T40330/1 -1-  .
2. 3.2  Fit and tighten screws -3-  .
