Removing Belt Tensioner (V6 Turbo)

WARNING: This page is about a different variant/trim than selected.
  1. Loosen drive belt and remove it from the belt tensioner.

    > 137819 REMOVING AND INSTALLING DRIVE BELT (V6 TURBO)

  2. Remove belt tensioner -1-  .

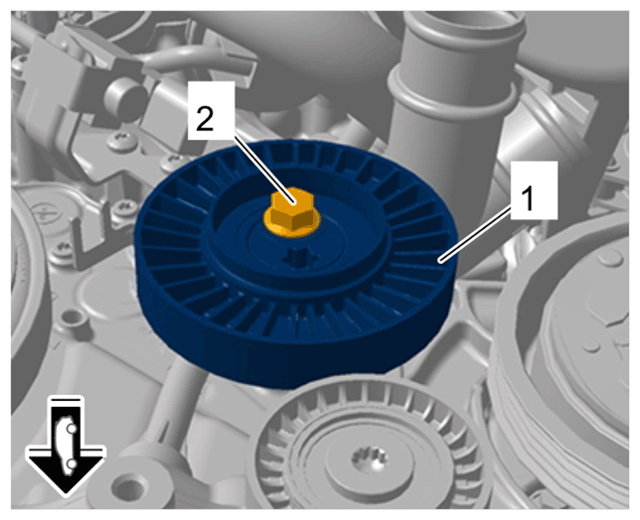

G15208528Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Belt tensioner (air-conditioning compressor)

  1. 2.1  Unscrew screw -2-  and remove belt tensioner -1-  .
