Removing Drive Plate
WARNING: This page is about a different variant/trim than selected.
NOTIFICATION
Dirt and contamination
- Risk of damage to units or components
→ Protect components from dirt and contamination.
→ Clean or replace dirty components.

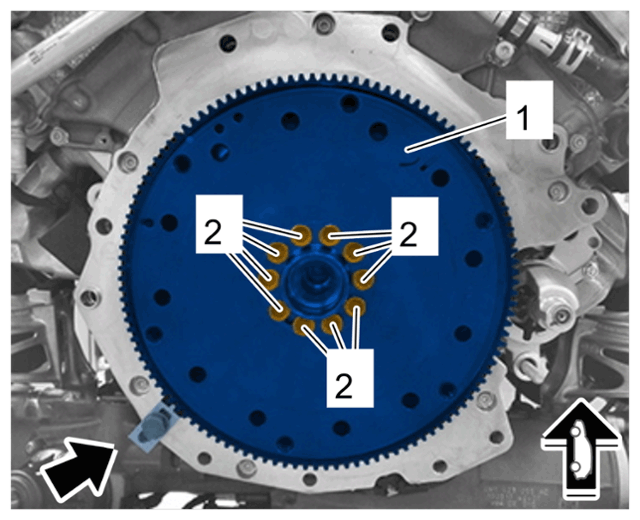

- Remove drive plate -1- .
Drive plate
- 1.1 > VAS 6766 - Counterhold tool must be secured as shown -Arrow- .
- 1.2 Unscrew screws -2- and remove drive plate -1- .
- 1.3 > VAS 6766 - Counterhold tool must now be removed.
