Removing Sealing Ring For Transfer Gear

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

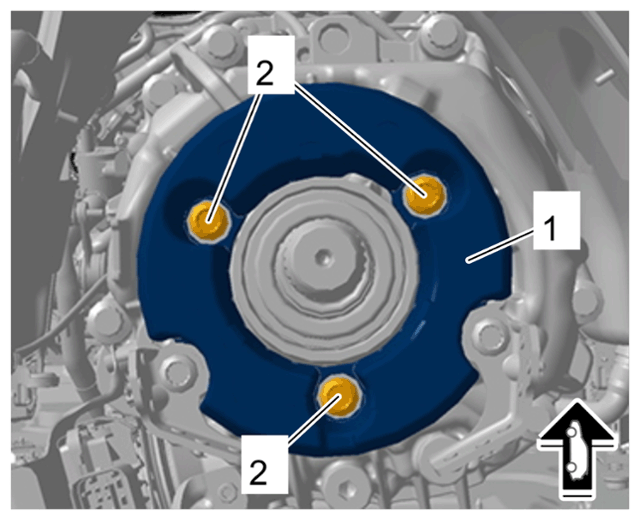

Damper

1. 1.1 Unscrew and remove screws -2-  .
2. 1.2 Remove damper -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

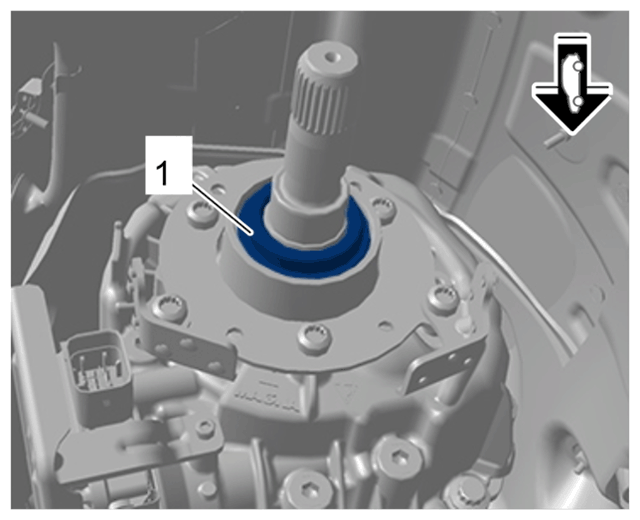

Dust boot on transfer gear

1. 2.1 Carefully lever off dust boot -1-  using a screwdriver.
2. 2.2 Remove sealing ring for transfer gear using > T20143 - extractor tool  .
3. 2.3 Carefully clean running and sealing faces.
