Installing Sealing Ring For Transfer Box

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Using pressure piece 9936

1. 1.1 Coat the external circumference on the new  transfer box sealing ring with ATF.
2. 1.2 Half-fill the space between the sealing lip and dust lip on the transfer box sealing ring with sealing grease G 052 128 A1  .

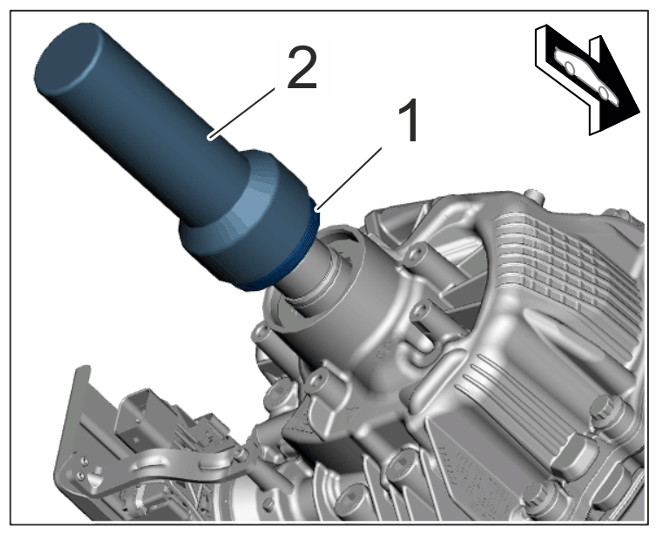

3. 1.3 Drive transfer box sealing ring -1-  in as far as it will go using > 9936 - pressure piece-2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

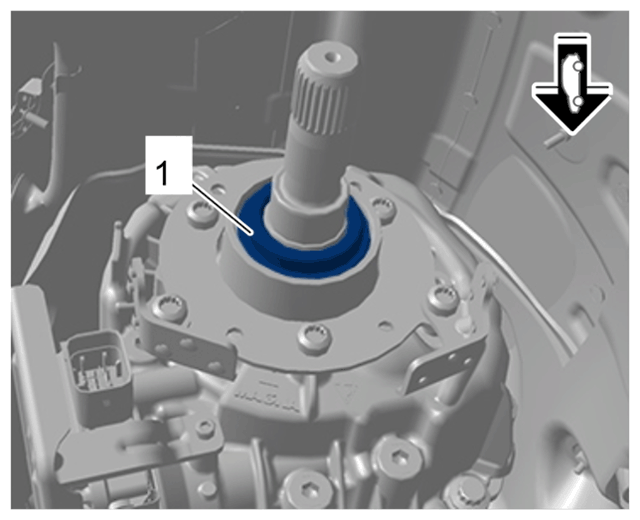

Dust boot on transfer gear

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Damper

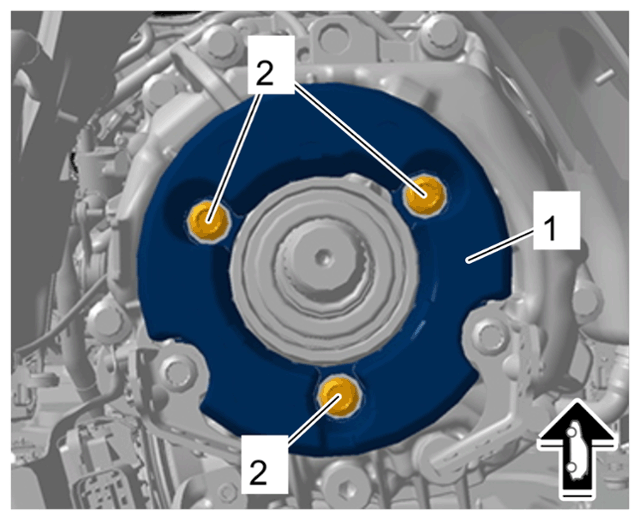

1. 3.1 Position damper -1-  .
2. 3.2 Screw in and tighten screws -2-  .

   > Tightening torque 28 Nm (20.7 ftlb.)
