Replacing Sealing Ring For Transfer Box

Information

The pictures shown in this document may differ from the original.

1. Replace sealing ring for transfer box -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

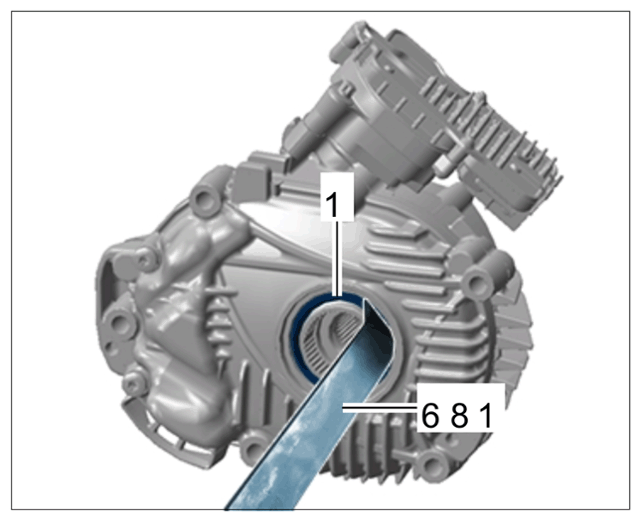

   Sealing ring for transfer gear, inside

   1. 1.1 Remove sealing ring for transfer box -1-  using > VW681 - hook  .
   2. 1.2 Carefully clean running and sealing faces.

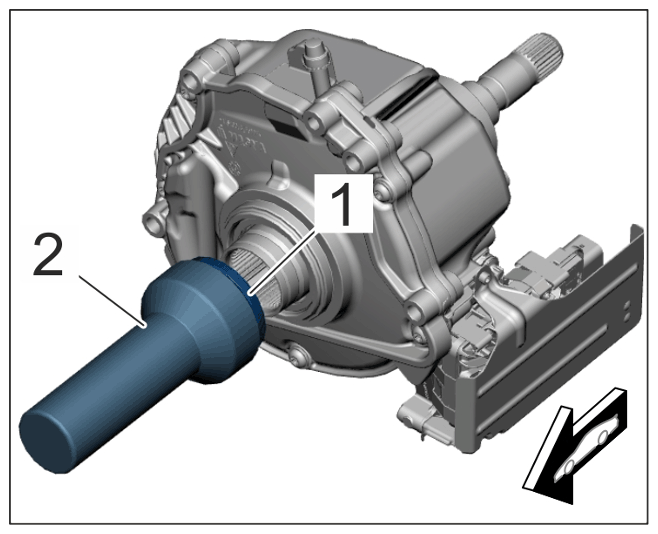

2. Install new sealing ring for transfer gear -1-  using > 9935 - pressure piece-2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Using pressure piece 9935
