Checking Oil For Final Drive

WARNING: This page is about a different variant/trim than selected.

WARNING: Hot fluid

Danger of scalding
1. → Let the fluid cool down.
2. → Wear personal protective gear.

CAUTION: Hot components

Risk of burns
1. → Let hot components cool down.
2. → Wear personal protective gear.

Information

Secure vehicle to prevent it rolling away.
To check transmission oil the vehicle must be horizontal.

Information

Use only oil approved by Porsche.

Check oil for final drive.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

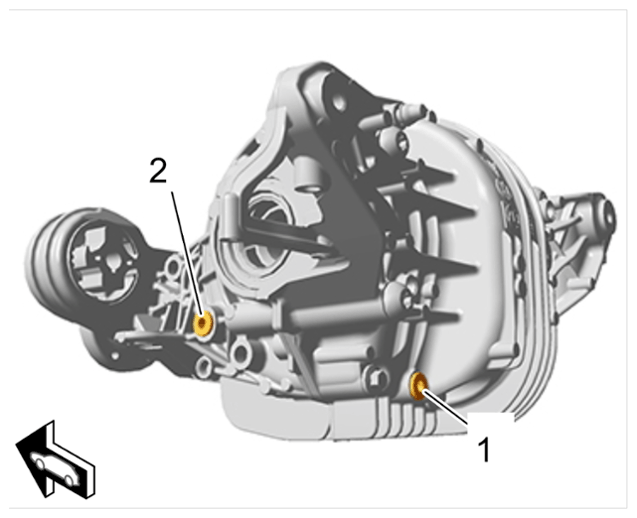

Oil drain plug and oil filler screw
1. 1.1 Unscrew oil filler screw -2- .
2. 1.2 Check whether the oil is at the lower edge of the oil filler screw opening -2- .
3. 1.3 Tighten new oil filler screw (-2- ).
  > Tightening torque 35 Nm (26 ftlb.)
