Removing Sealing Ring For Cardan Flange

WARNING: This page is about a different variant/trim than selected.
  1. Remove sealing ring for cardan flange.

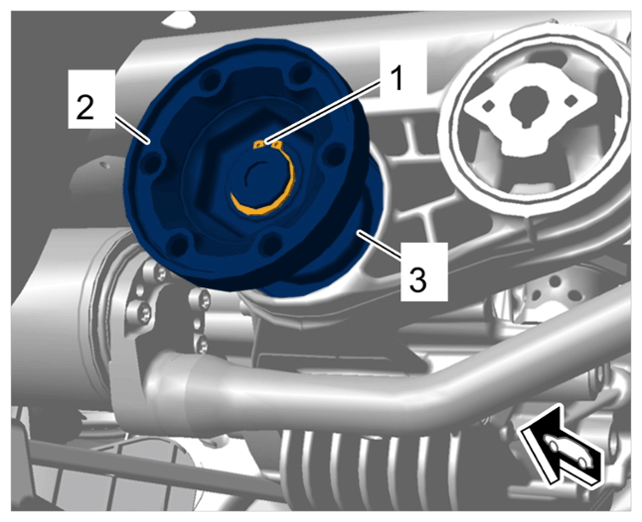

    G15278130Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cardan flange

    1. 1.1 Remove circlip -1-  .
    2. 1.2 Mark installation position of cardan flange -2-  and pull cardan flange off the shaft.
    3. 1.3 Carefully remove dust boot -3-  using a screwdriver.
    4. 1.4 Remove sealing ring for cardan flange using > T20143 - extractor tool  .
  2. Clean sealing surfaces.
