Installing Sealing Ring For Cardan Flange

WARNING: This page is about a different variant/trim than selected.
  1. On the new  cardan flange sealing ring, fill the space between the dust lip and sealing lip -Arrow-  with grease.

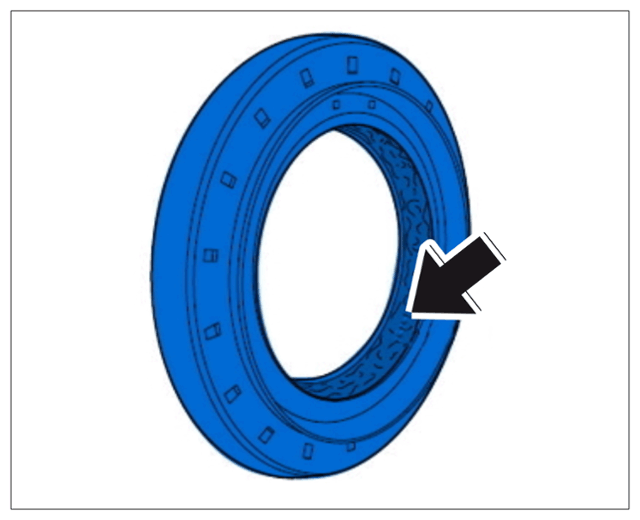

    G15278131Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Preparing sealing ring

  2. Install sealing ring for cardan flange.

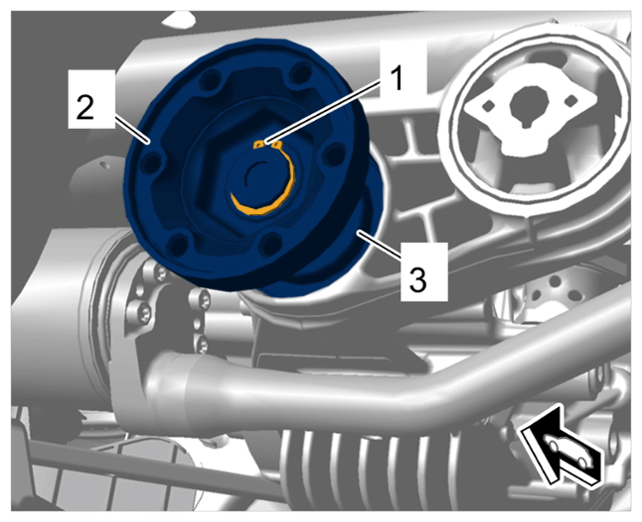

    G15278132Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Sealing ring for cardan flange

    1. 2.1 Tap new sealing ring for cardan flange in as far as it will go using > T10432 - assembly tool  .
    2. 2.2 Tap new dust boot -3-  in carefully using > T10432 - assembly tool  .
    3. 2.3 Fit the cardan flange -2-  on the shaft according to the marking.
    4. 2.4 Fit new circlip -1-  .
