Removing Servo Motor For Transfer Gear

WARNING: This page is about a different variant/trim than selected.
  1. Release and unplug electric plug connection -1-  .
    G15278122Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  2. Unclip electric wire harness -2-  and set it aside.
    G15278123Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric wire harness

  3. Unscrew fastening screws -1-  and remove heat protection panel -2-  .

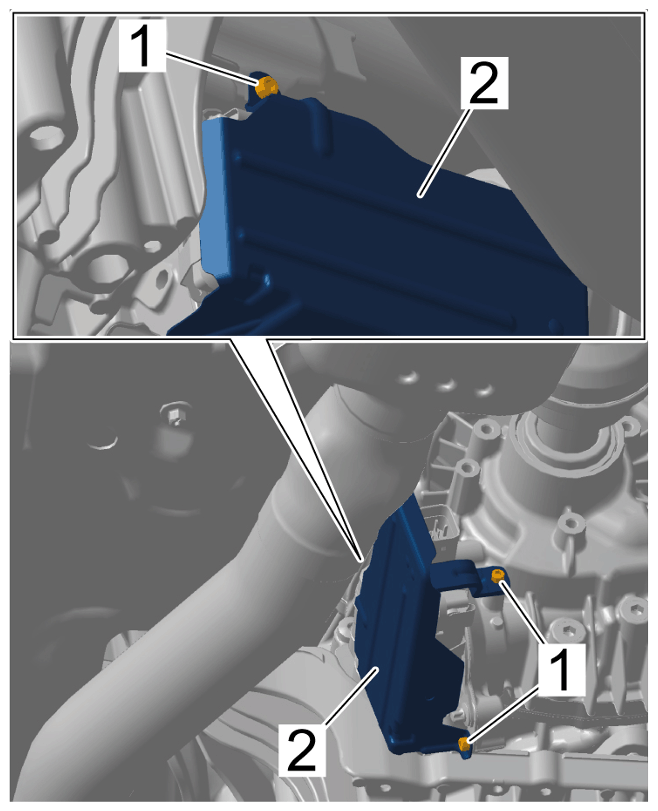

    G15278124Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat protection panel

  4. Remove servo motor for transfer gear -1-  .

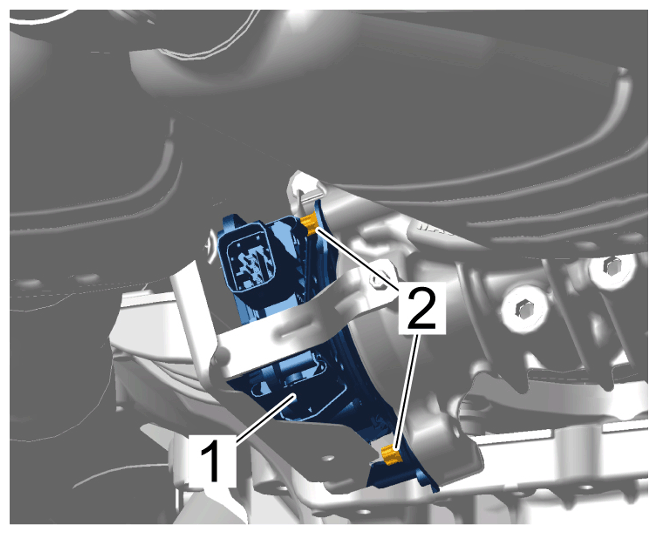

    G15278125Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Servo motor for transfer gear

    1. 4.1 Unscrew fastening screws -2-  .
    2. 4.2 Pull servo motor for transfer gear -1-  out of the transfer gear.
