Removing Transverse Lock Servo Motor
WARNING: This page is about a different variant/trim than selected.

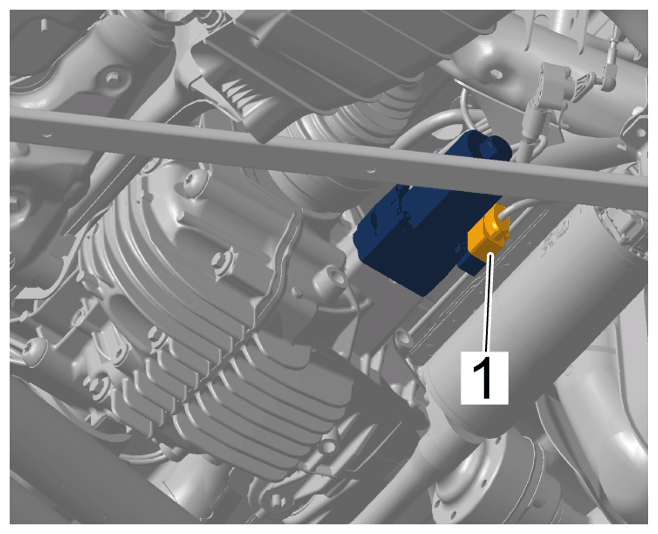

- Release and unplug electric plug connection -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Electric plug connection

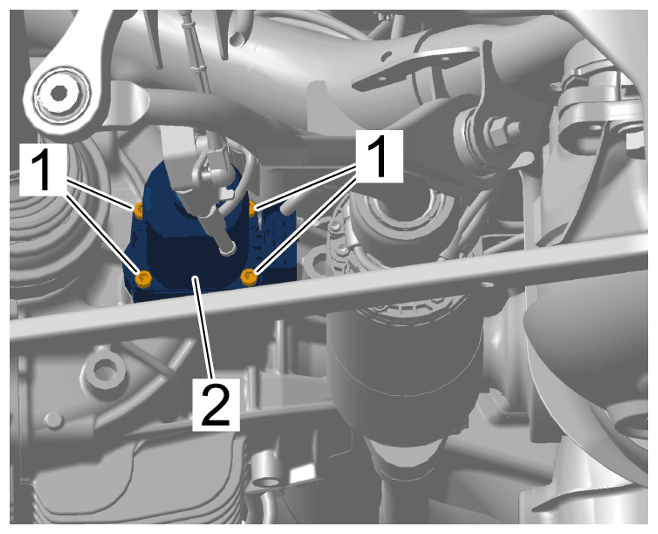

- Unscrew fastening screws -1-
and remove servo motor -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Fastening screws
