Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove rear underbody cover at the right -1-  .

    > WM, 519419 REMOVING AND INSTALLING COVER FOR REAR UNDERBODY

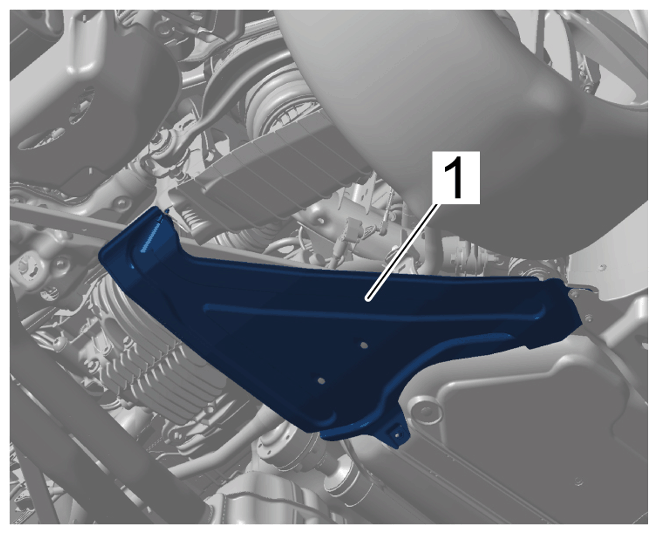

    G15278116Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear underbody cover at the right
