Removing Control Unit For Rear-Differential Lock

WARNING: This page is about a different variant/trim than selected.

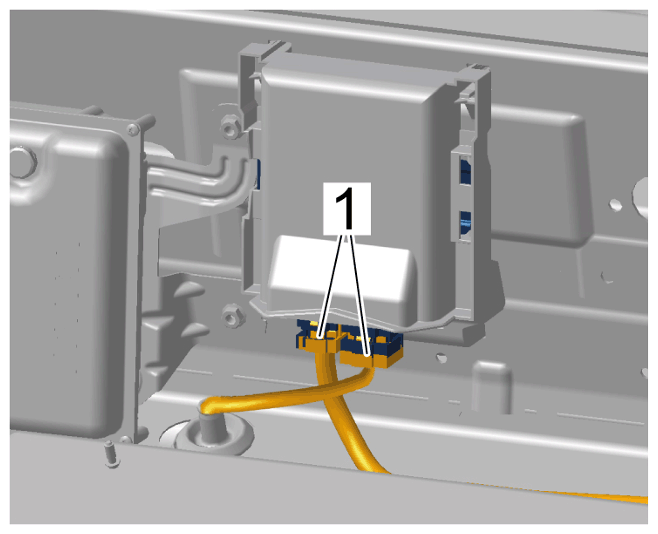

Release and unplug electric plug connections -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections

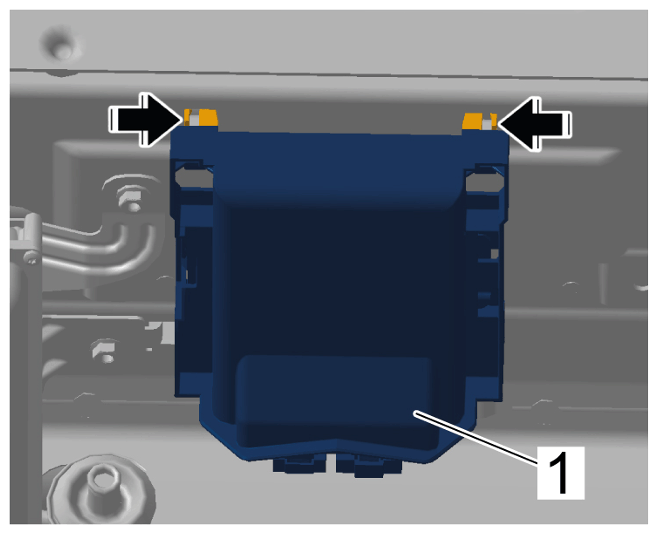

Press retaining lugs together -Arrows- and remove holder -1- with rear-differential lock control unit.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear-differential lock control unit holder

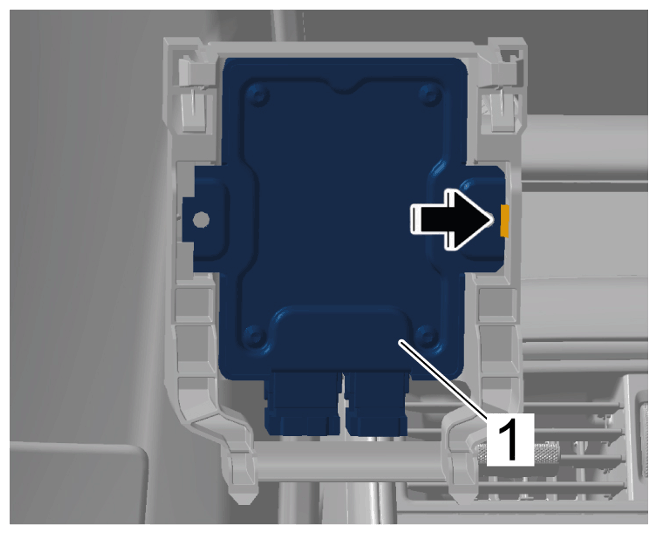

Unclip rear-differential lock control unit -1- from the holder -Arrow- and remove rear-differential lock control unit -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear-differential lock control unit
