Removing Vent Line

WARNING: This page is about a different variant/trim than selected.

Clean adapters and adjacent areas using suitable aids to prevent dirt from getting into the transmission.
Information

The adapters must not be levered at the vent line or pulled in order to disconnect them.
Disconnect front adapter -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

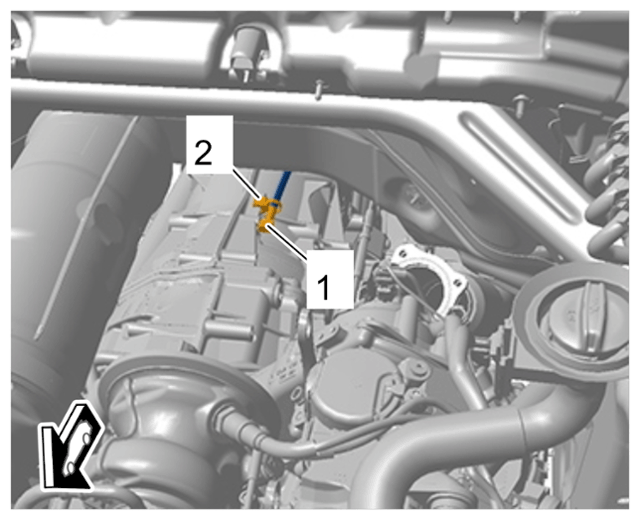

Front adapter
1. 2.1 Unclip front clip -2- .
2. 2.2 Carefully lever front adapter -1- out of the transmission housing.
Information

The adapters must not be levered at the vent line or pulled in order to disconnect them.
Remove vent line -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

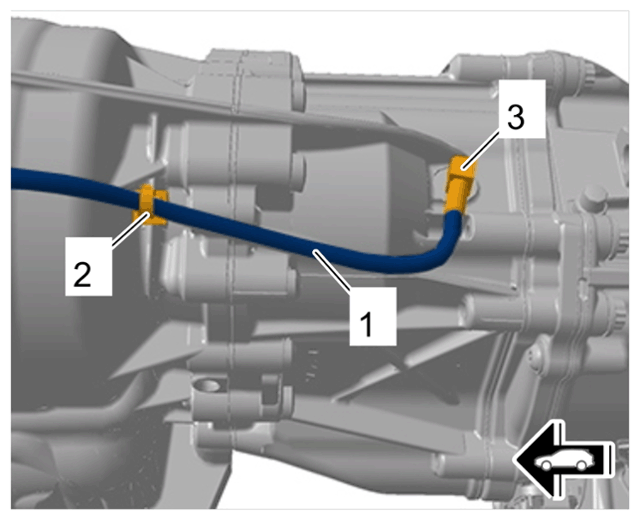

Rear adapter
1. 3.1 Unclip rear clip -2- .
2. 3.2 Carefully lever rear adapter -3- out of the transmission housing.
3. 3.3 Remove vent line -1- .
