Tool Overview - Front Final Drive Rubber Mounting
WARNING: This page is about a different variant/trim than selected.

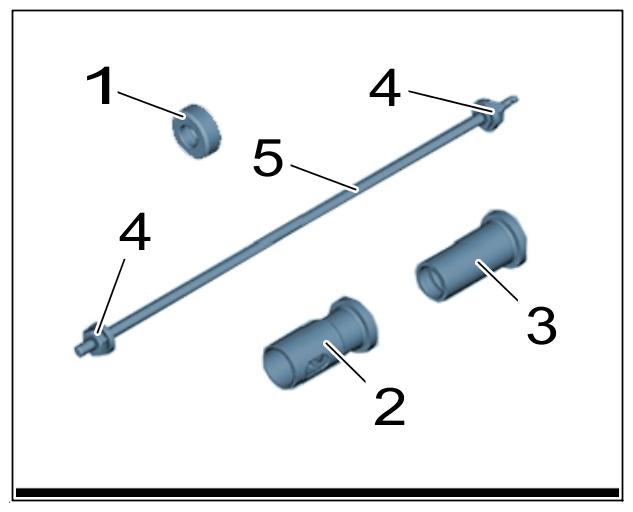

> T10254 - Assembly tool
Assembly tool T10254
| 1 | T10254/1 |
| 2 | T10254/2 |
| 3 | T10254/3 |
| 4 | T10254/4 |
| 5 | T10254/5 |

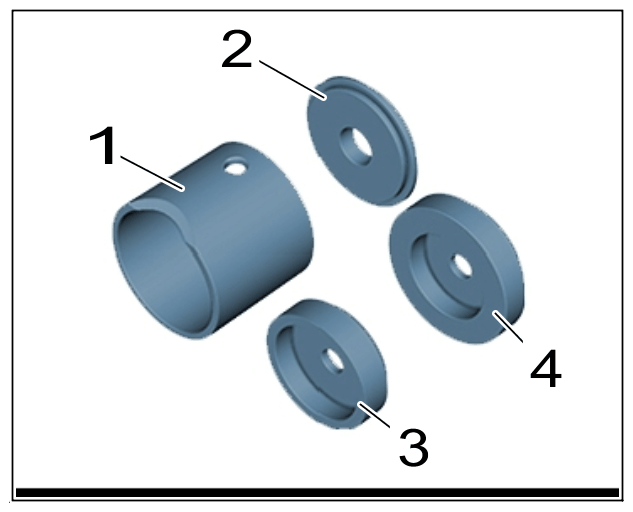

Assembly tool T40342
> T40342 - Assembly tool
Assembly tool T40342
| 1 | T40342/1 |
| 2 | T40342/2 |
| 3 | T40342/3 |
| 4 | T40342/4 |

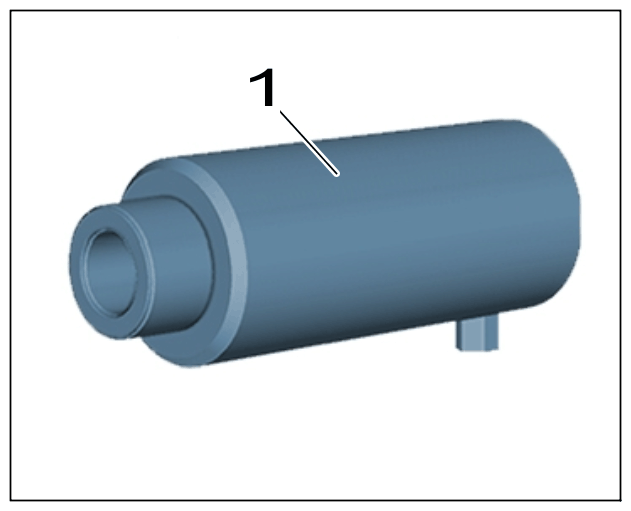

> VAS 6178 - Hydraulic cylinder
Hydraulic cylinder VAS 6178
| 1 | > VAS 6178 - Hydraulic cylinder |

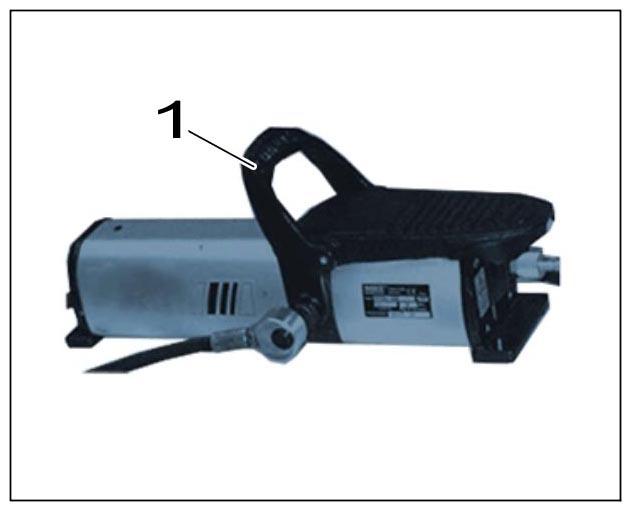

> VAS 6179 - Foot pump
Foot pump VAS 6179
| 1 | > VAS 6179-Foot pump |
Tool overview - rubber mounting for final drive, rear

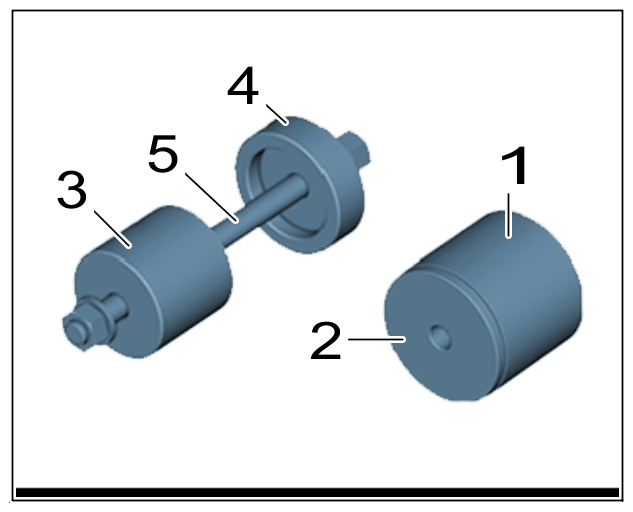

> T40032 - Assembly tool
Assembly tool T40032
| 1 | T40032/1 |
| 2 | T40032/2 |
| 3 | T40032/3 |
| 4 | T40032/4 |
| 5 | T40032/5 |

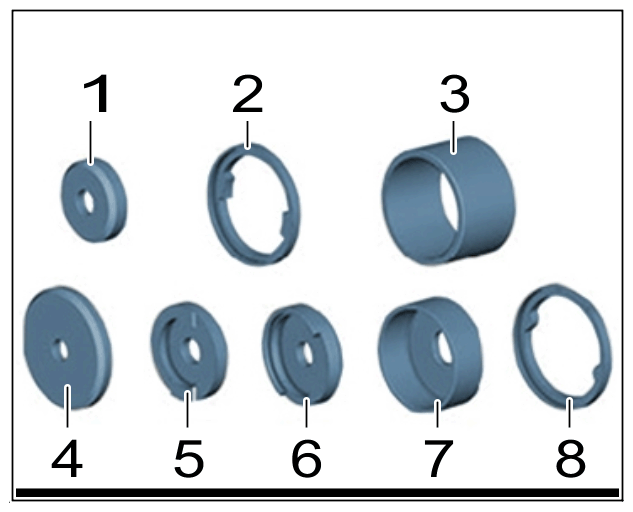

> T40033 - Assembly tool
Assembly tool T40033
| 1 | T40033/1 |
| 2 | T40033/2 |
| 3 | T40033/3 |
| 4 | T40033/4 |
| 5 | T40033/5 |
| 6 | T40033/6 |
| 7 | T40033/7 |
| 8 | T40033/8 |
