Removing Rubber Mounting For Final Drive (Rear)
WARNING: This page is about a different variant/trim than selected.
Information
The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.
- Fit T40032 assembly fixture
and > T40033 - assembly fixture
on the rubber mounting for the final drive.

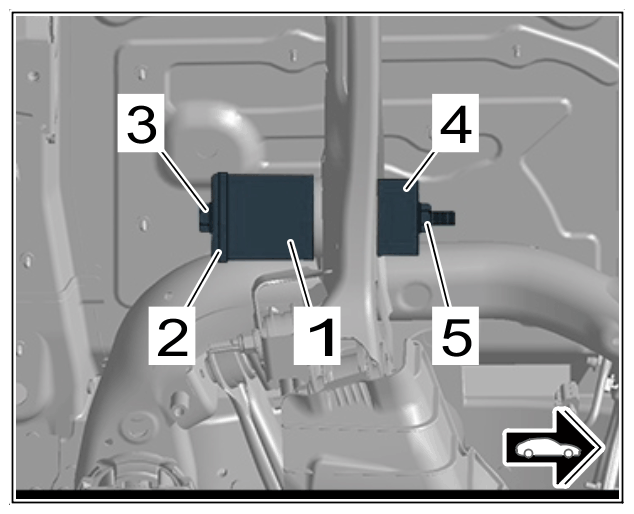

T40032 and T40033 assembly fixture
- 1.1 Fit T40033/3 - pressure piece -1- together with T40033/4 - plate -2- on rubber mounting for final drive.
- 1.2 Guide T40032/5 - spindle -3- through T40033/4 - plate -2- , T40033/3 - pressure piece -1- and rubber mounting for final drive.
- 1.3 Push T40032/4 - pressure piece -4- onto T40032/5 - spindle -3- and screw on nut -5- .
- Press out rubber mounting for final drive.
T40032 and T40033 assembly fixture
- 2.1 Turn clockwise at the T40032/5 - spindle -3- and counter at the nut -5- at the same time until the rubber mounting for the final drive is completely pressed out of the rear axle housing.
- 2.2 Remove special tools together with rubber mounting for final drive.
Information
Mountings that have been pressed out must not be re-used.
- Replace rubber mounting for final drive.
Information
Never use machining tools for cleaning the contact surfaces of the rubber mounting on the final drive.
- Clean contact surfaces of rubber mounting for final drive.
