Replacing Sealing Ring (Pinion Shaft)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

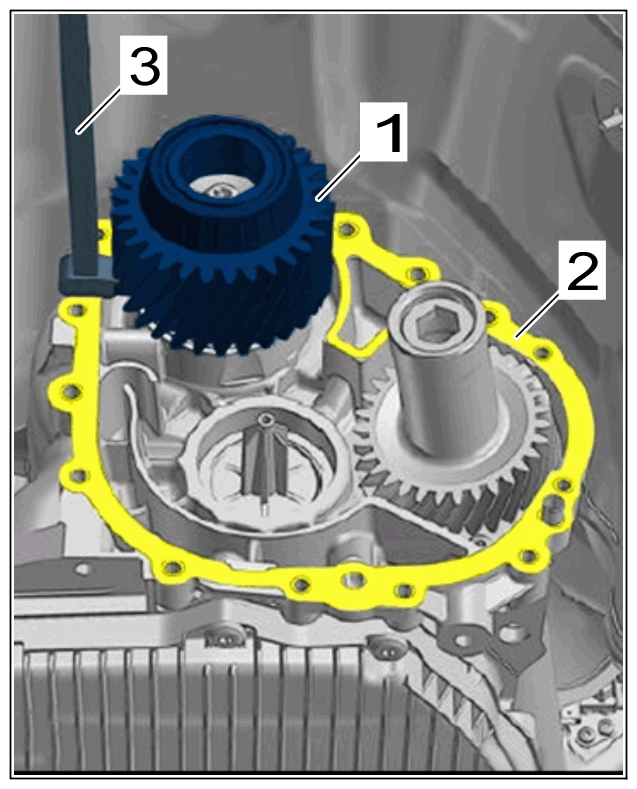

Pinion shaft

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

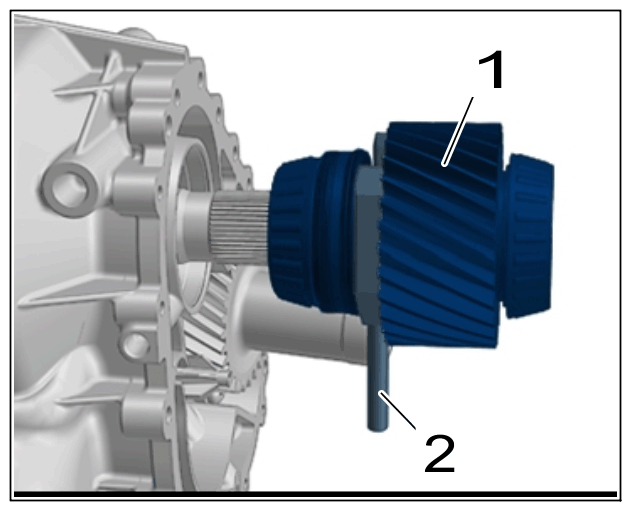

Pinion shaft

1. 2.1 Fit old seal -2-  for protection of the housing half.
2. 2.2 Carefully loosen and pull off pinion shaft -1-  using > VW637/2 - Puller-3-  .
   1. 2.2.1 Make sure that the shim behind the pinion shaft -1-  is not lost.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

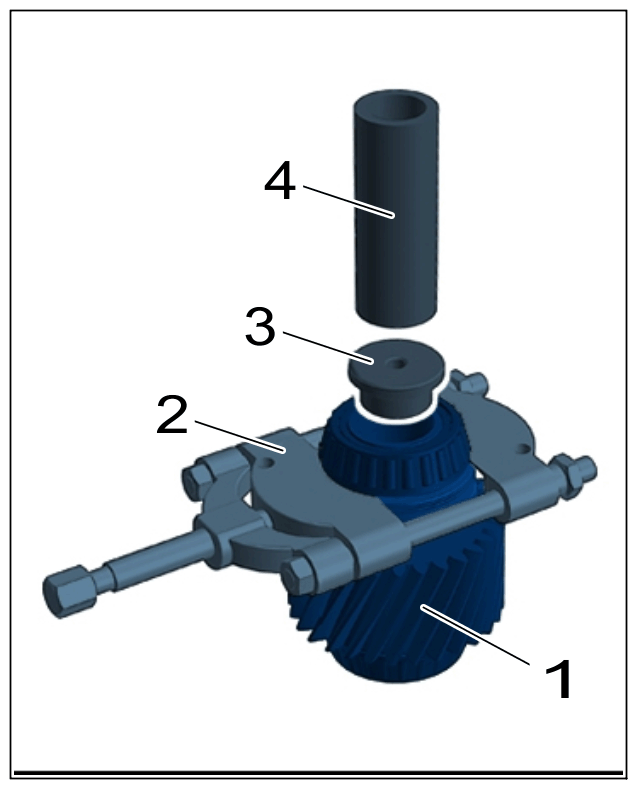

Taper roller bearing (pinion shaft)

1. 3.1 Fir > VAS 6961 - Separating device-2-  , > VW447H - Pressure plate-3-  and > VW416B - Pipe-4-  as shown.
2. 3.2 Press out taper roller bearing using > VAS 6654 - Workshop Press  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

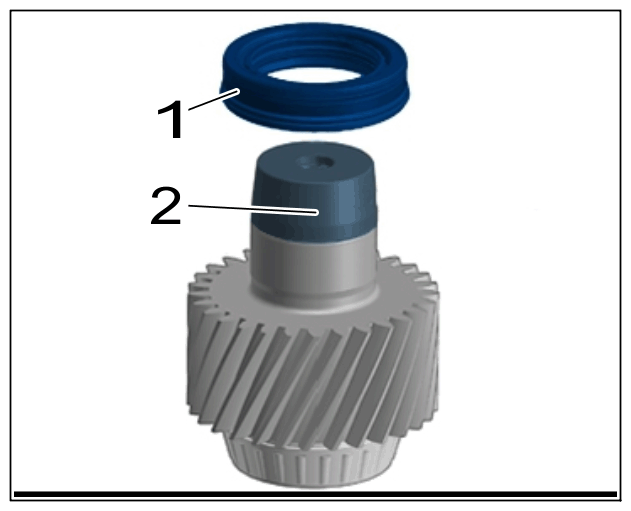

Sealing ring (pinion shaft)

1. 4.1 Pull old sealing ring -1-  off the pinion shaft.
2. 4.2 Clean contact surfaces on the pinion shaft.
3. 4.3 > T40381 - Fit assembly fixture  /1 -2-  on the pinion shaft.
4. 4.4 Push new  sealing ring -1-  onto pinion shaft with the open side down as far as it will go.
5. 4.5 Remove > T40381 - assembly fixture  /1 -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

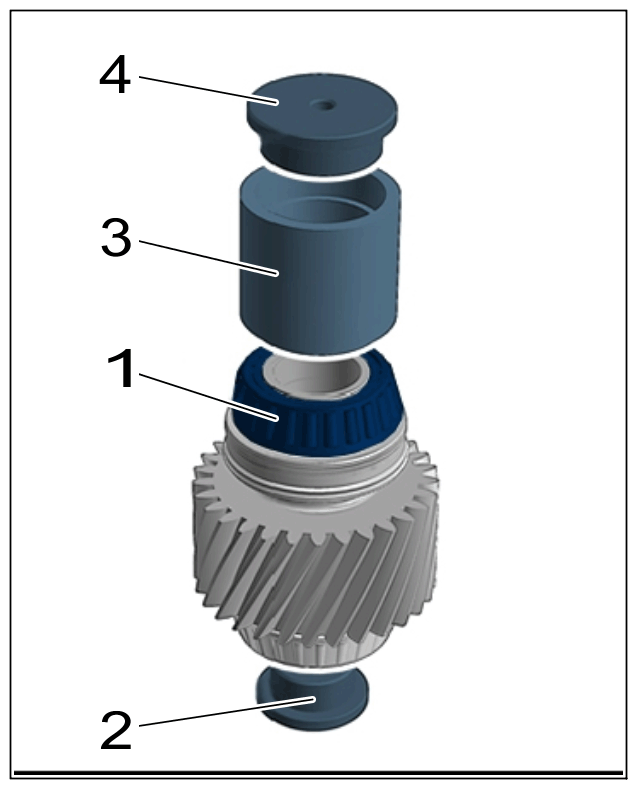

Taper roller bearing (pinion shaft)

1. 5.1 Support pinion shaft on > VW511 - Thrust washer-2-  .
2. 5.2 Position taper roller bearing -1-  and > 3118 - pressure piece-3-  as well as > VW447I - Pressure plate-4-  as shown.
3. 5.3 Carefully press on taper roller bearing -1-  using > VAS 6654 - Workshop Press  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

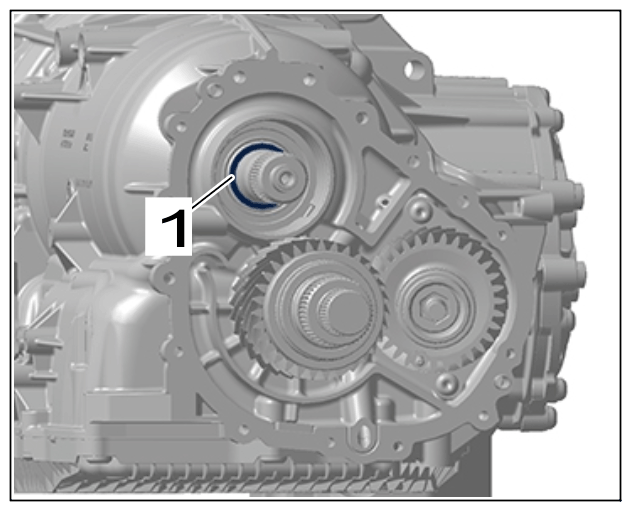

Shim (pinion shaft)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

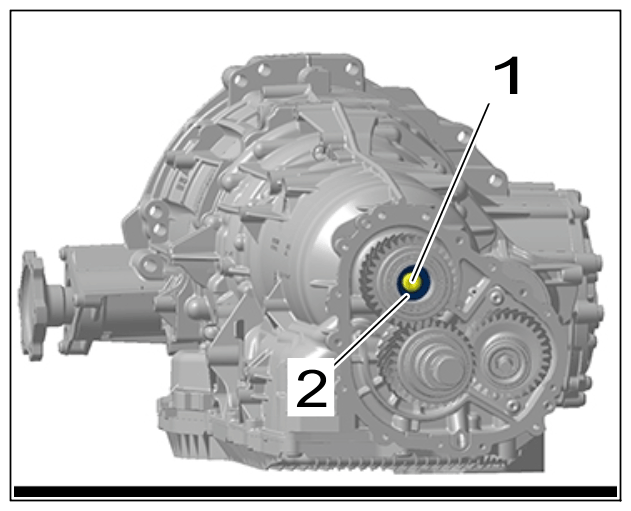

Pinion shaft

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pinion shaft

1. 8.1 Insert new  spacer -2-  .
2. 8.2 Fit and tighten new screw -1-  .

   > Tightening torque 20 Nm (15 ftlb.)
