Removing Sealing Ring For HALFSHAFT Flange
WARNING: This page is about a different variant/trim than selected.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

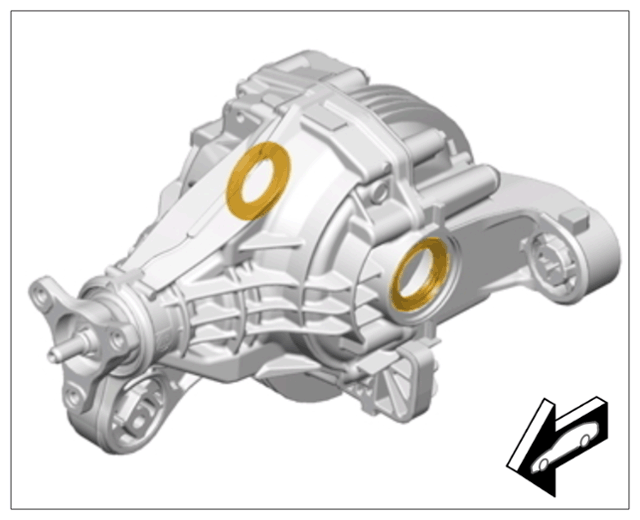

Overview of sealing rings (example of rear axle differential)
- Pull off sealing rings using > VAS 6965 - puller set
or alternatively, using > T20143 - extractor tool
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

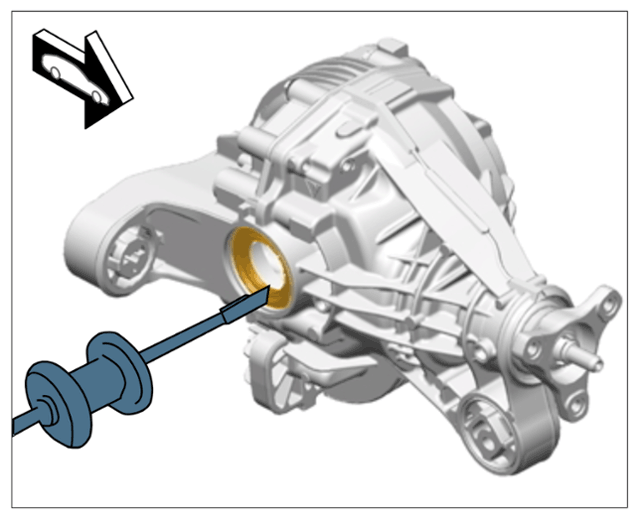

Removing output drive sealing ring (example of rear axle differential)
