Installing Sealing Ring For HALFSHAFT Flange

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

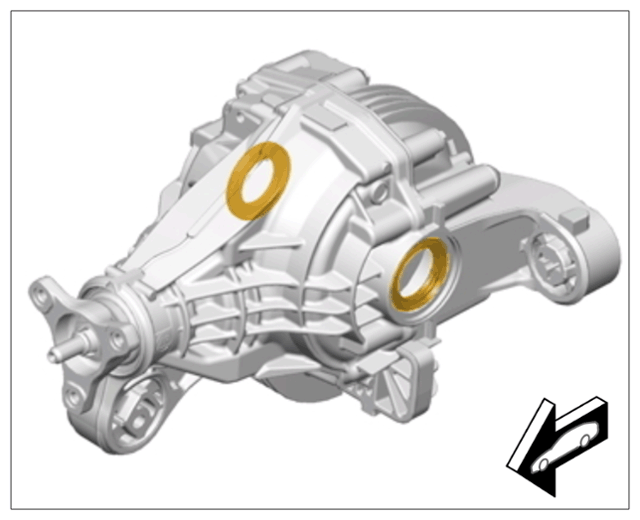

Overview of sealing rings (example of rear axle differential)

1. Tap in new sealing rings until the pressure piece is touching the transmission housing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

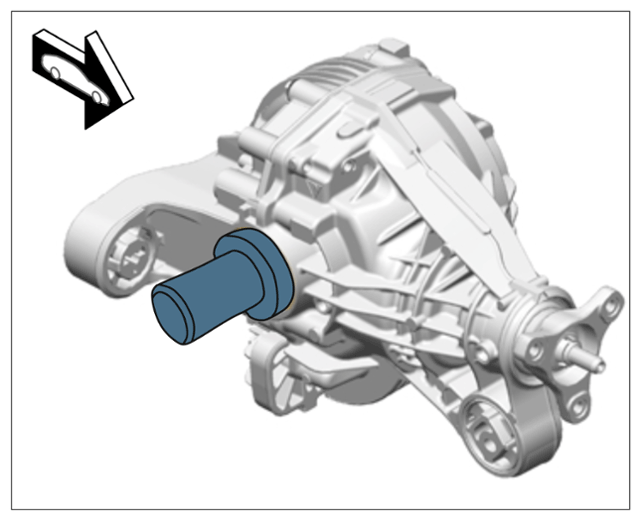

   Installing sealing ring (similar to illustration)

   1. 1.1 Clean the sealing face.
   2. 1.2 Tap in sealing ring (50 x 82 x 9, left) using > T10256 - pressure piece  .
   3. 1.3 Tap in sealing ring (50 x 72 x 9, right) using > T10181 - pressure piece  .
