Removing Sealing Ring On Flanged Shaft

WARNING: This page is about a different variant/trim than selected.

WARNING: Hot fluid

Danger of scalding
1. → Let the fluid cool down.
2. → Wear personal protective gear.

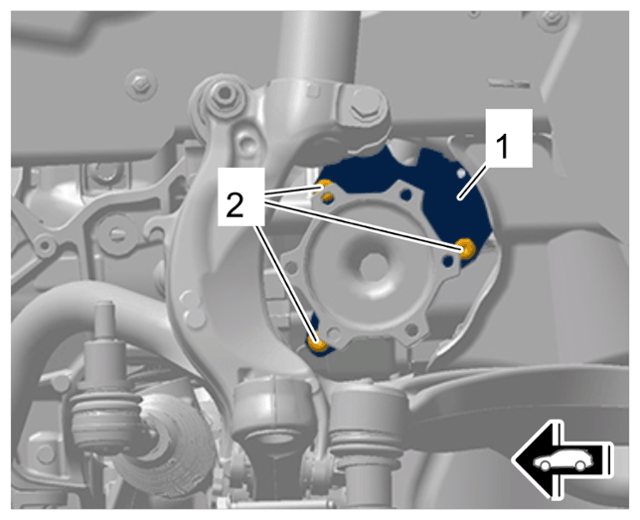

Loosen end plate on flanged shaft -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Left flanged shaft
1. 1.1 Unscrew screws -2- .
2. 1.2 Pull end plate on flanged shaft -1- together with the left flange shaft out of the transmission.
V6:
Remove differential cover -12- .

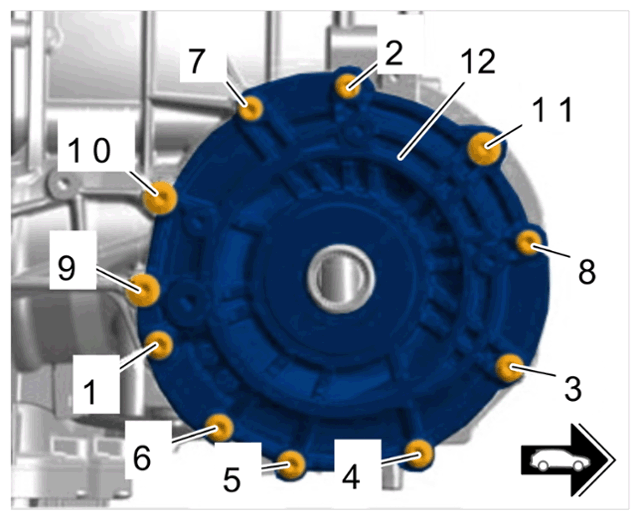

Fig 1: Differential Cover V6 Screws Loosening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Differential cover V6
1. 2.1 Unscrew screws in the sequence -11 to 1- .
2. 2.2 Remove differential cover -12- .
V8:

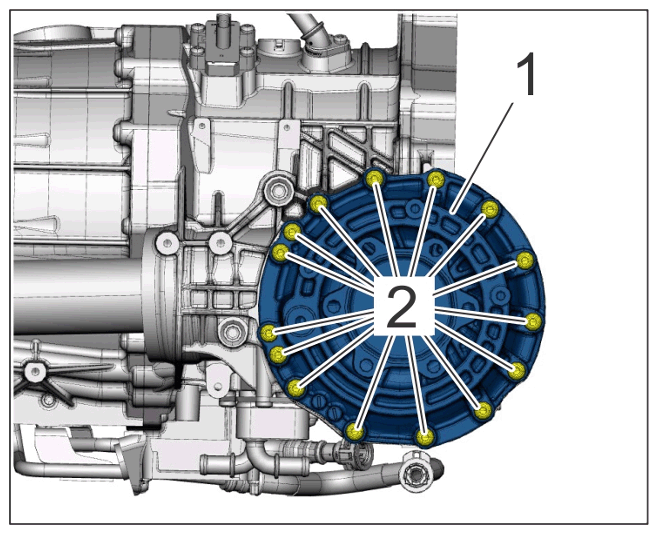

Remove differential cover -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Differential cover V8
1. 3.1 Unscrew screws -2- in diagonally opposite sequence.
Remove transfer box -1- from the housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Transfer box

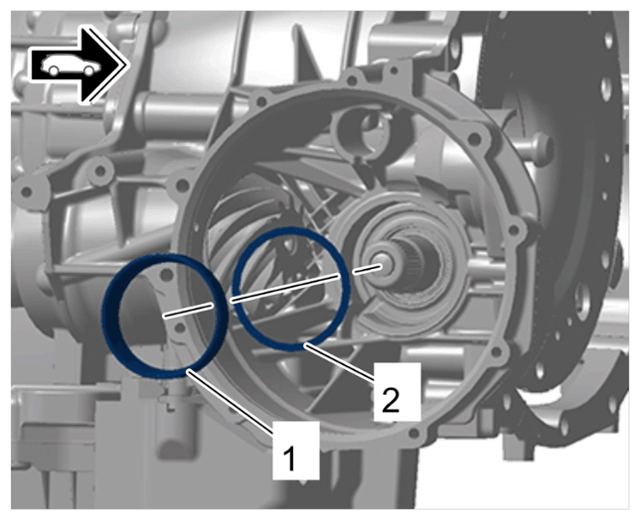

Remove outer ring for taper roller bearing -1- and adjusting shim -2- from the housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Outer ring and adjusting shim r

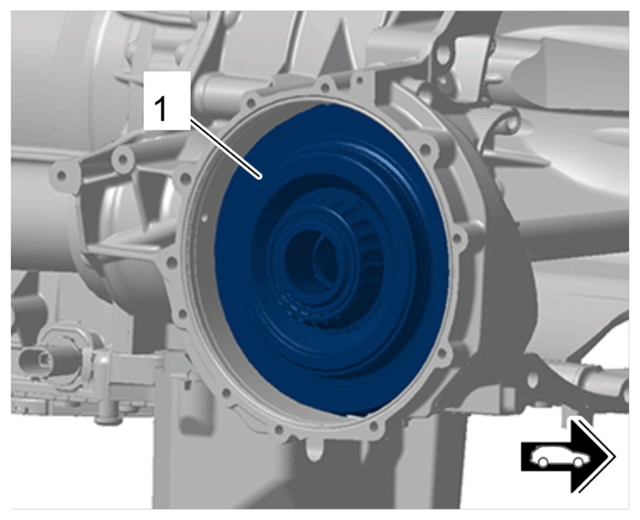

Remove sealing ring on flanged shaft.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

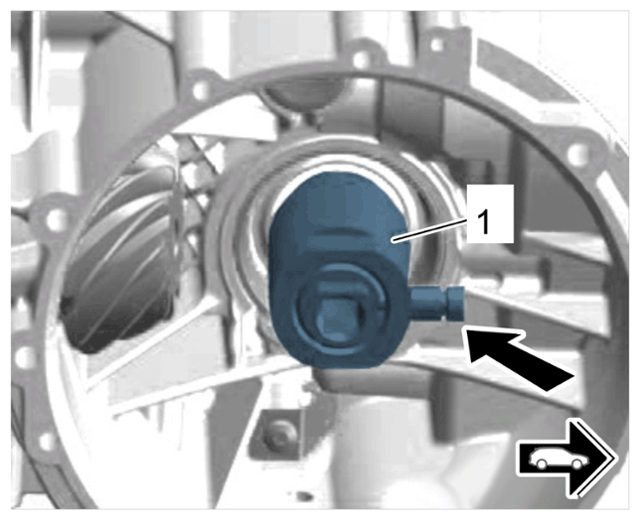

Extractor on sealing ring on flanged shaft
1. 6.1 Set inner part of > 3240 - extractor (-1- ) so that it is flush with the outer part and lock the inner part with knurled screw -Arrow- .
2. 6.2 Oil threaded head of > 3240 - extractor (-1- ), position it and screw it in as far as required until the sealing ring also turns.
3. 6.3 Continue to turn > 3240 - extractor (-1- ) and pull it at the same time in order to remove the sealing ring.
4. 6.4 Clean sealing surfaces thoroughly.
