Installing Sealing Ring On Flanged Shaft

WARNING: This page is about a different variant/trim than selected.

Information

Push sealing ring onto the > T10139 - thrust piece so that the open side is facing the tool.

Install sealing ring on flanged shaft.
1. 1.1 Coat the external circumference and sealing lip of the sealing ring on the flanged shaft with a light coating of ATF.
2. 1.2 Tap new sealing ring on flanged shaft in as far as it will go using > T10139 - thrust piece .
Information
- The adjusting shim is calibrated and must not be replaced with a shim of a different thickness.

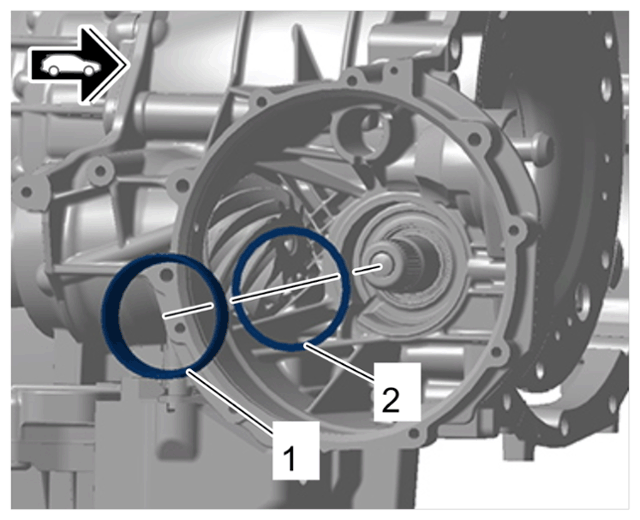

Insert outer ring for taper roller bearing -1- and adjusting shim -2- into the transmission housing by hand.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Outer ring and adjusting shim

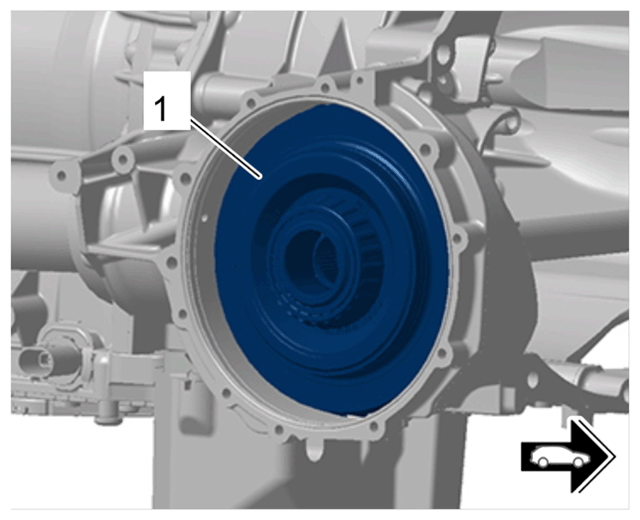

Insert transfer box -1- into the housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Transfer box

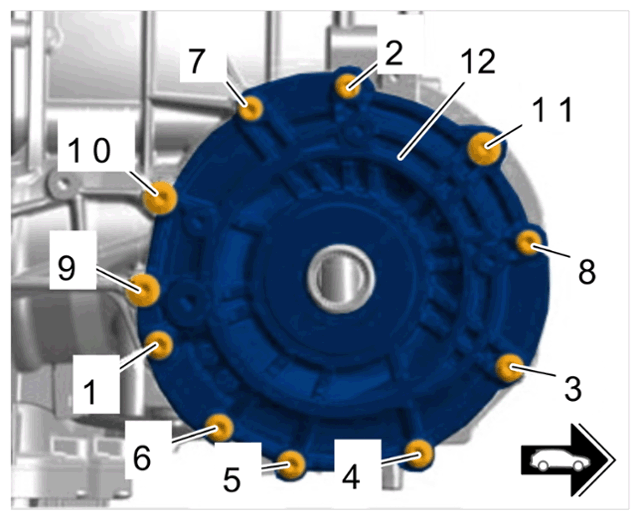

V6:
Install differential cover -12- .

Fig 1: Differential Cover V6 Screws Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Differential cover V6
1. 4.1 Replace differential cover O-ring.
2. 4.2 Screw in and tighten screws in the sequence -1 to 8- .
  > Tightening torque 35 Nm (25.8 ftlb.)
3. 4.3 Screw in and tighten screws in the sequence -9 to 11- .
  > Tightening torque 47 Nm (34.66 ftlb.)

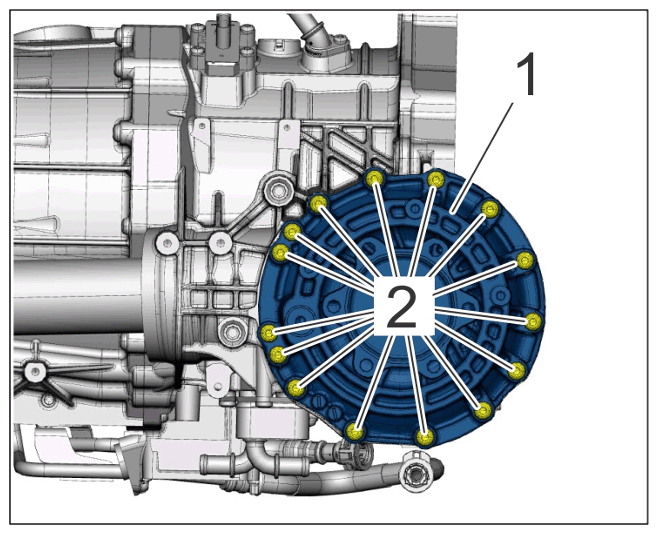

V8:
Install differential cover -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Differential cover V8
1. 5.1 Replace differential cover O-ring.
2. 5.2 Place screws -2- in diagonally opposite sequence.
3. 5.3 Tighten screws -2- in diagonally opposite sequence.
  > Tightening torque 35 Nm (25.8 ftlb.)

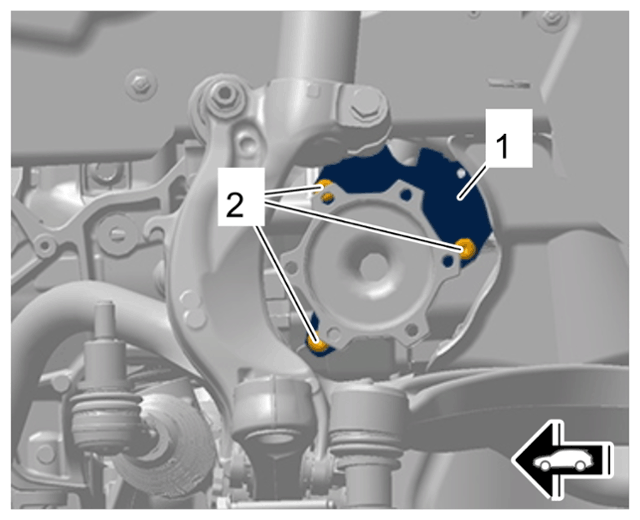

Install end plate on flanged shaft -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Left flanged shaft
1. 6.1 Fit flanged shaft together with end plate for flanged shaft -1- into the transmission housing, making sure not to damage the sealing ring on the flanged shaft.
2. 6.2 Fit new screws -2- .
3. 6.3 Screw in and tighten screws -2- .
  > Initial tightening 9 Nm (6.5 ftlb.)

  > Final tightening torque angle 60°
