Removing Final Drive

WARNING: This page is about a different variant/trim than selected.
WARNING: Danger of objects or loads falling down
  • Risk of squashing or crushing
    1. → Secure components to prevent them from falling down.
  1. Unscrew nut on final drive -2-  .
    G15277989Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Threaded joint for final drive

    Information

    Always use an intermediate layer (e.g. hard rubber) when using the jack!

  2. Support the final drive.

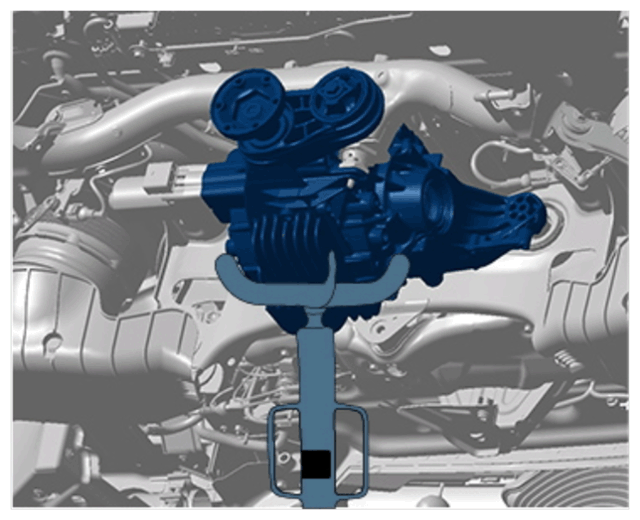

    G15277990Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Support for final drive

    1. 2.1 > VAS 6931 - Engine and gearbox jack  must be positioned under the final drive using a suitable support. > Support for final drive
    2. 2.2 Carefully support the final drive using > VAS 6931 - engine and gearbox jack  .
  3. Loosen final drive -1-  .

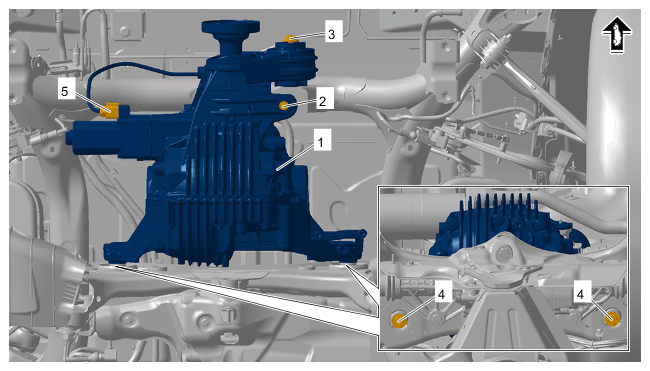

    G15277991Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Threaded joint for final drive

    1. 3.1 Unscrew screw on front final drive -3-  .
    2. 3.2 Unscrew screws on rear final drive -4-  .
    3. 3.3 Only if installed:

      Release and disconnect electric plug connection on servo motor for final drive -5-  .

    Information

    You will need a second mechanic to help you with this step.

  4. Remove final drive.
    1. 4.1 Lower the final drive on > VAS 6931 - engine and gearbox jack  and get another person to help you to guide it out of the vehicle.
