Installing ATF Pan

Information

The ATF filter is integrated in the ATF pan.

When changing the ATF, the ATF pan must be replaced.

1. Install ATF pan.

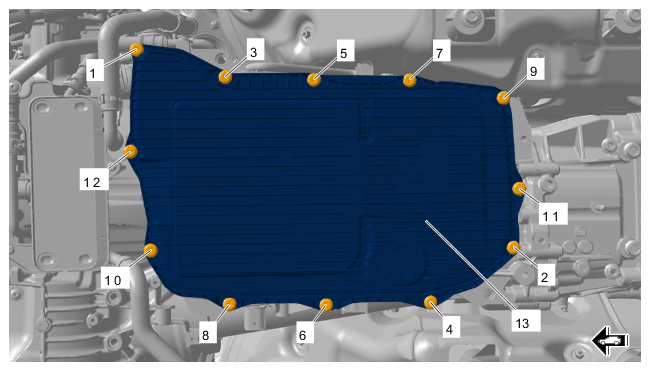

   Fig 1: ATF Pan Screws Tightening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   ATF pan

   1. 1.1 Clean sealing surfaces thoroughly.
   2. 1.2 Clean magnets in the ATF pan.
   3. 1.3 Replace seal on ATF pan.
   4. 1.4 Fit screws -5 and 6-  by hand in order to secure the ATF pan.
   5. 1.5 Screw in screws and tighten in the sequence -1 to 12-  .

      > Tightening torque 10 Nm (7.5 ftlb.)
