Installing Transmission Housing (Rear)

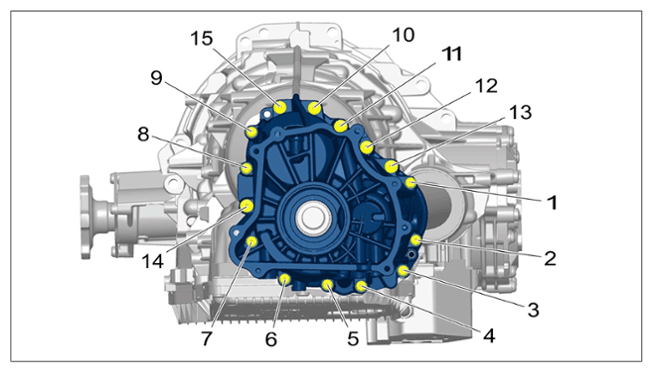

Fig 1: Transmission Housing Screws Tightening Sequence (Rear)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Transmission housing (rear)

1. 1.1 Move transmission housing (rear) into installation position.
2. 1.2 Replace screws -1 to 9-  .
3. 1.3 Screw in screws -1 to 15-  by hand.
4. 1.4 Tighten screws -2, 9 and 6-  to the specified initial tightening torque.

   > Tightening torque 6 (4.5 ftlb.) Nm

5. 1.5 Tighten screws -1 to 9-  to the specified initial tightening torque.

   > Tightening torque 9 Nm (6.5 ftlb.)

6. 1.6 Tighten screws -1 to 9-  .

   > Torque angle + 90°

7. 1.7 Tighten screws -10 to 15-  .

   > Tightening torque 47 (35 ftlb.) Nm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

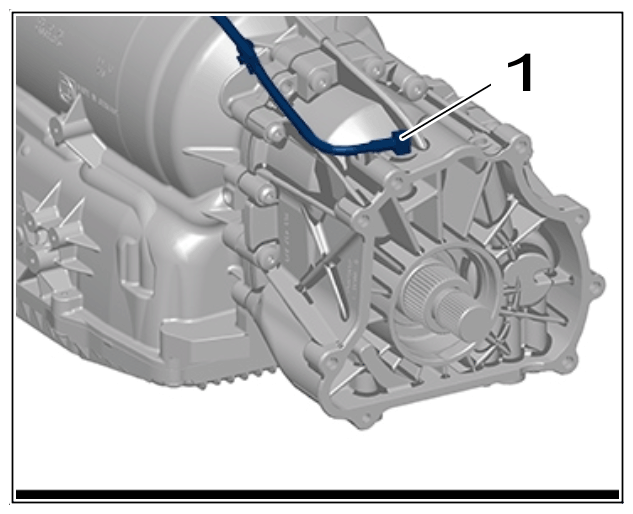

Vent line for transmission housing (rear)
