Removing Automatic Transmission

WARNING: This page is about a different variant/trim than selected.
WARNING: Danger of objects or loads falling down
  • Risk of squashing or crushing
    1. → Secure components to prevent them from falling down.
  1. Have suitable stoppers ready for closing off the line connections.

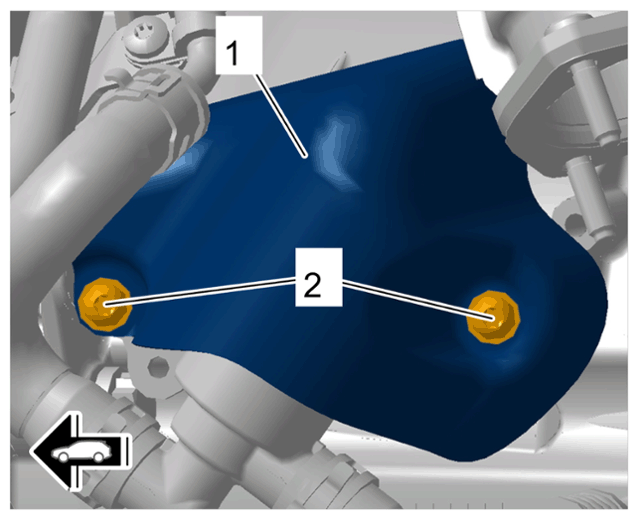

  2. Unscrew screws on heat shield -2-  and remove heat shield -1-  .
    G15277910Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat shield on additional coolant pump at the left

    WARNING: Hot fluid
    • Danger of scalding
      1. → Avoid contact with hot fluid.
      2. → Wear personal protective gear.
  3. Disconnect additional coolant pump -1-  at the left.

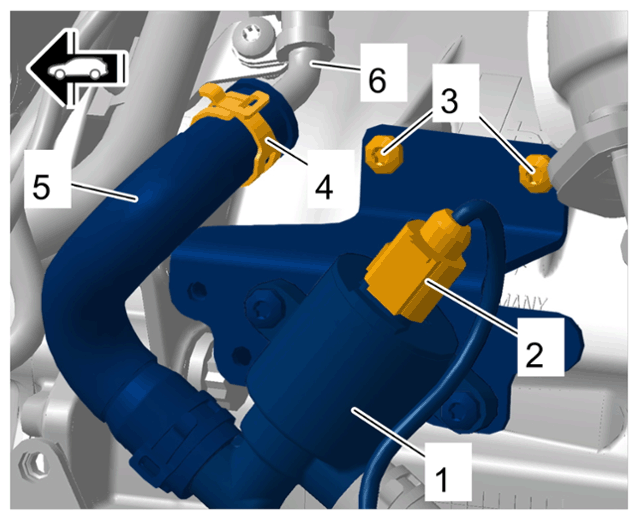

    G15277911Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Additional coolant pump at the left

    1. 3.1 Release and disconnect electric plug connection for additional coolant pump -2-  .
    2. 3.2 Unscrew screws on additional coolant pump holder -3-  .
    3. 3.3 Loosen spring band clamp -4-  using > VAS 6890 - spring band clamps pliers  .
    4. 3.4 Disconnect coolant hose -5-  from coolant pipe -6-  .
    5. 3.5 Close off line connections with stoppers.
    6. 3.6 Set additional coolant pump -1-  aside.
    WARNING: Hot fluid
    • Danger of scalding
      1. → Avoid contact with hot fluid.
      2. → Wear personal protective gear.
  4. Disconnect coolant line.

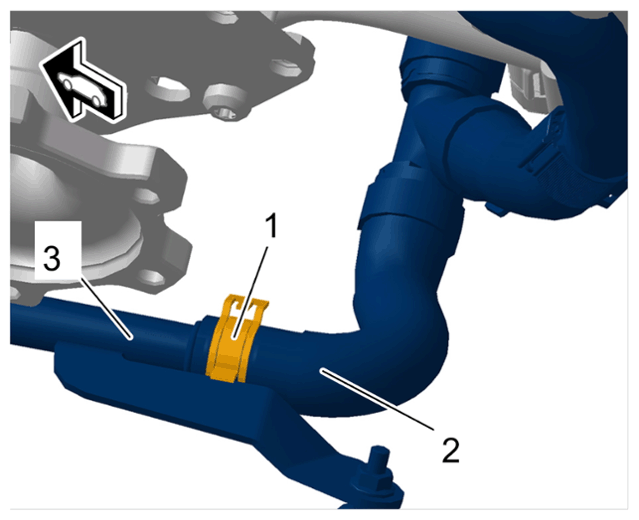

    G15277912Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant line

    1. 4.1 Loosen spring band clamp -1-  using > VAS 6890 - spring band clamps pliers  .
    2. 4.2 Disconnect coolant hose -2-  from coolant pipe -3-  .
    3. 4.3 Close off line connections with stoppers.

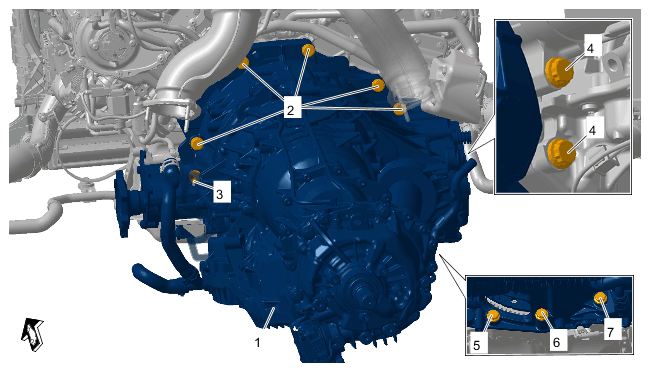

  5. Unscrew screws for automatic transmission at the top -2 and 3-  .
    G15277913Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Threaded joint for automatic transmission

  6. Hybrid only:

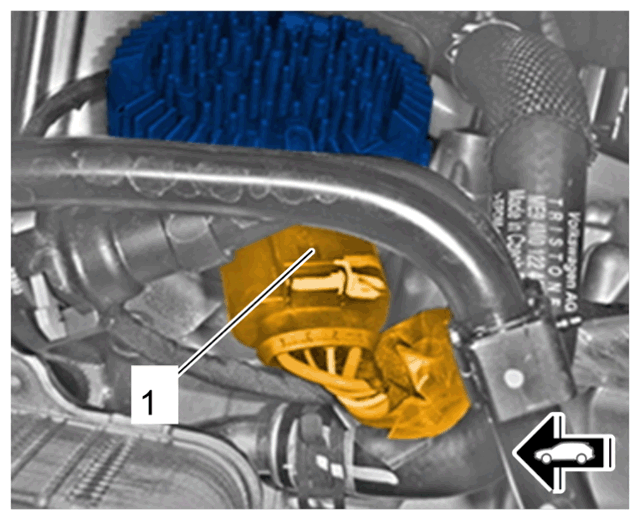

    Release and disconnect electric plug connection on pressure adjuster for clutch -1-  .

    G15277914Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection on pressure adjuster for clutch

  7. Disconnect electric wire harness -3-  .

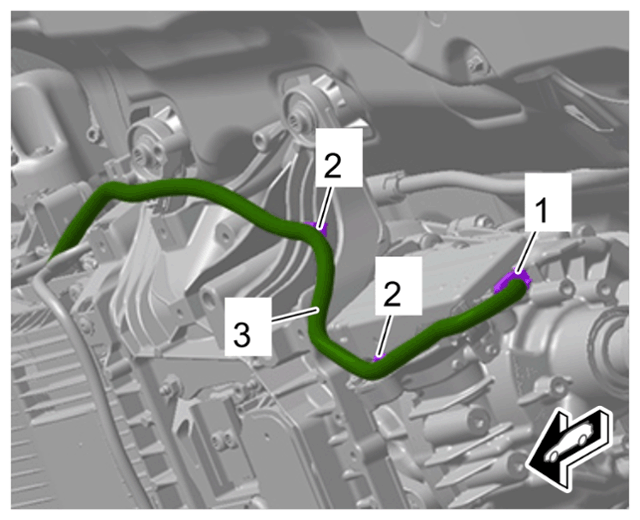

    G15277915Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for automatic transmission

    1. 7.1 Release and disconnect electric plug connection -1-  .
    2. 7.2 Unclip line clips -2-  and set electric wire harness -3-  aside.

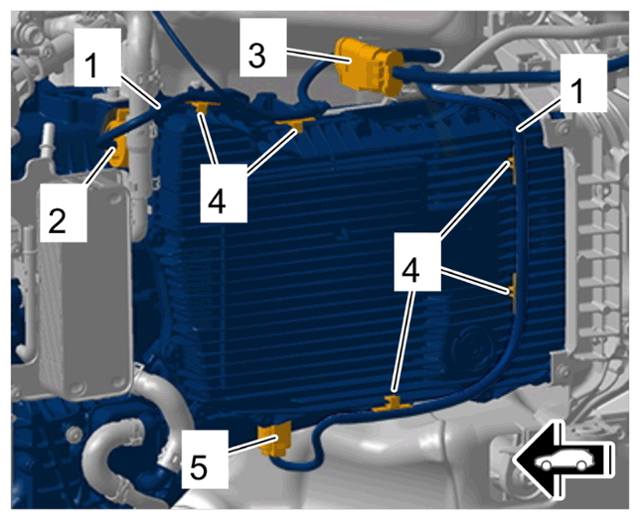

  8. Disconnect electric wire harness on automatic transmission -1-  .
    G15277916Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric wire harness for automatic transmission

    1. 8.1 Release and disconnect electric plug connections on automatic transmission -2 and 3-  .
    2. 8.2 Release and disconnect electric plug connection -5-  .
    3. 8.3 Unclip clips -4-  on electric wire harness for automatic transmission.
    4. 8.4 Move electric wire harness for automatic transmission -1-  aside.

    Information

    To make it easier to turn the engine, the drive belts can be removed from the generator and air-conditioning compressor.

    > Removing and installing drive belt (V8 biturbo)

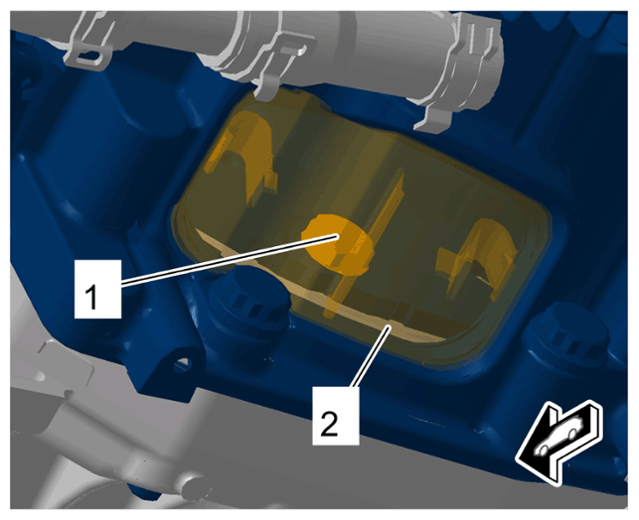

  9. Unscrew drive plate screws -1-  .
    G15277917Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Drive plate screws

    1. 9.1 Remove cap -2-  .
    2. 9.2 Unscrew drive plate screw -1-  .
    3. 9.3 Turn the engine further and repeat the procedure on all drive plate screws -1-  .
  10. Unscrew and remove screws -4-  .
    G15277918Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Threaded joint for automatic transmission

    1. 10.1 Unscrew screws -4-  on automatic transmission using a commercially available 3/8-inch flexible-head socket (a/f 16).

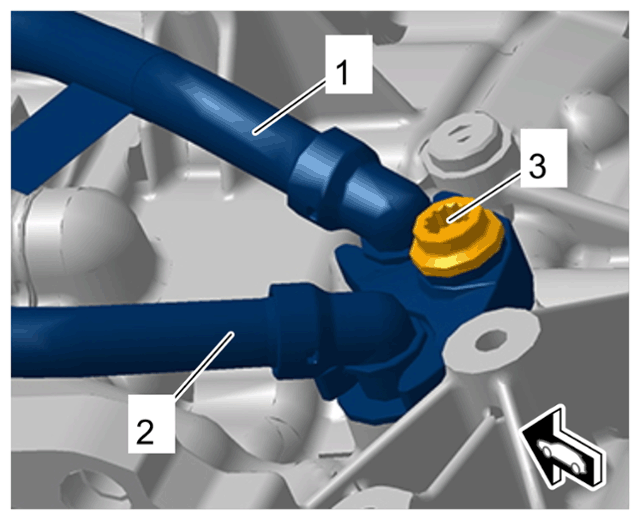

  11. Disconnect ATF lines -1 and 2-  .
    G15277919Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    ATF lines

    1. 11.1 Loosen screw on ATF lines -3-  as far as required until the ATF lines -1 and 2-  can be turned, but do not unscrew fully.
    2. 11.2 Carefully turn ATF lines -1 and 2-  as far as required in the connections until the threaded joint for the automatic transmission is accessible.
  12. Unscrew screws for automatic transmission -5 to 7-  .
    G15277920Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Threaded joint for automatic transmission

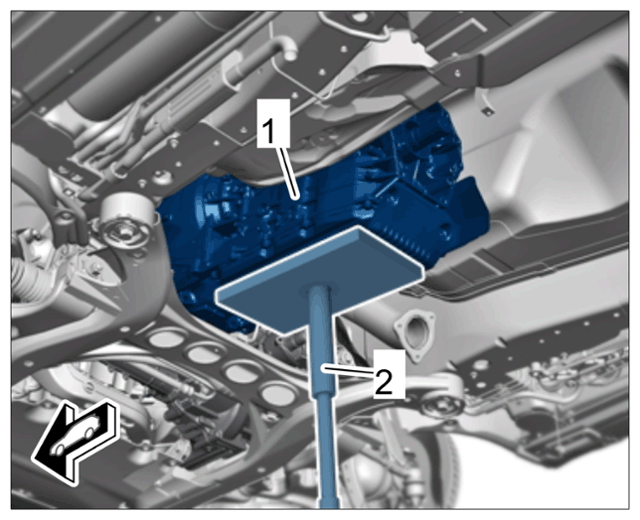

  13. Support automatic transmission -1-  .
    G15277921Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Automatic transmission on transmission jack (shown as an example)

    1. 13.1 > T40173A - Gearbox support  must be set up on > VAS 6931 - engine and gearbox jack-2-  .
    2. 13.2 > VAS 6931 - Engine and gearbox jack-2-  must be positioned under the automatic transmission -1-  and fitted on the automatic transmission -1-  .
    3. 13.3 Secure automatic transmission -1-  on > VAS 6931 - engine and gearbox jack-2-  using a tension strap.
  14. Support the engine.
  15. Loosen transmission support -1-  .

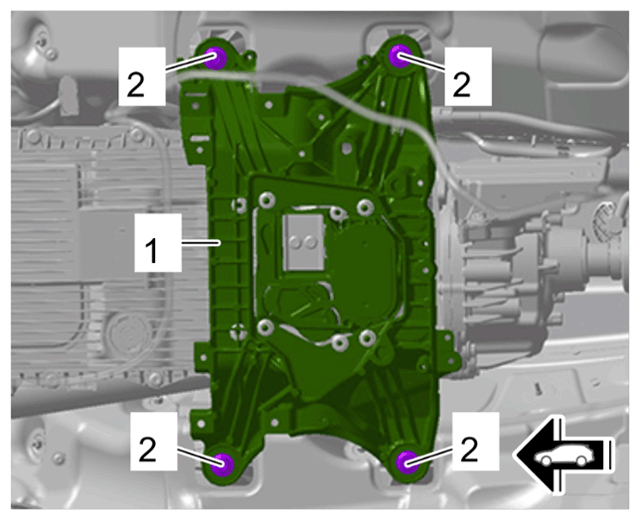

    G15277922Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Transmission support

    1. 15.1 Unscrew screws on transmission support -2-  .
    2. 15.2 Carefully lower the automatic transmission together with transmission support on > VAS 6931 - engine and gearbox jack  and guide them out of the vehicle.
