Topping Up Atf

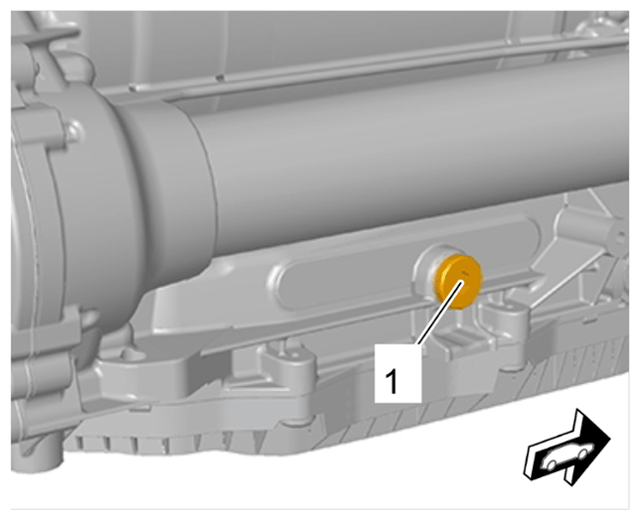

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw plug for filling oil

Information

Use only oil approved by Porsche.

1. 3.1 > VAS 6262A - Adapter for oil filling  must now be connected.
2. 3.2 Add ATF until oil emerges.
3. 3.3 > VAS 6262A - Adapter for oil filling  must now be removed.

> Tightening torque 30 Nm (22 ftlb.) (22.1 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw plug for filling oil

Information

An additional quantity of ATF oil is required in the ATF oil circuit to guarantee improved operating reliability.

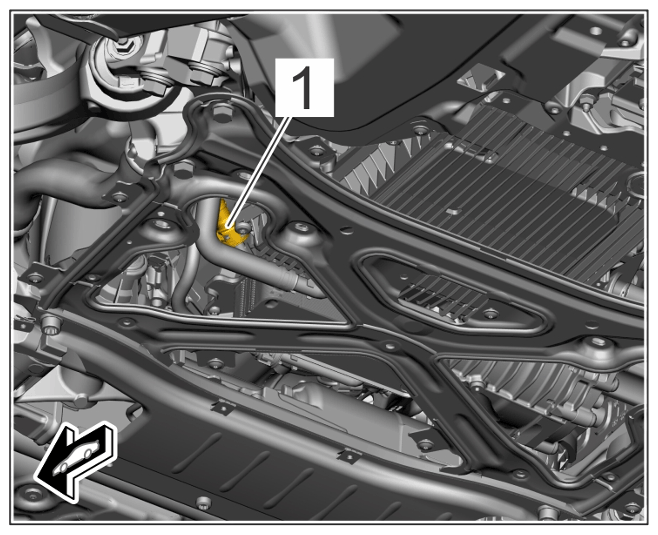

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Quick connector on ATF cooler

1. 6.1 > VAS 6617 - Hand pump for gear oil  must be connected to > P90020 - adapter  .
2. 6.2 > VAS 6617 - Hand pump for gear oil  must be filled with the defined quantity of oil (see table). To do this, suck in air through the pump and use the scale on the pump to set at least the defined quantity of oil from an ATF oil container.
3. 6.3 Open oil line for the ATF cooler at the quick connector -1-  and insert > P90020 - adapter  at the quick connector.
4. 6.4 Fill the set quantity of oil using > VAS 6617 - hand pump for gear oil  . After filling, suck in air again and inject it to ensure that the oil is filled completely.
5. 6.5 > P90020 - Adapter  must now be pulled off. After filling completely, close the line for the ATF cooler with the quick connector -1-  by pressing down the locking clip on the ATF connection piece and check that it is fitted securely.
