Removing Tie-Rod Ball

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

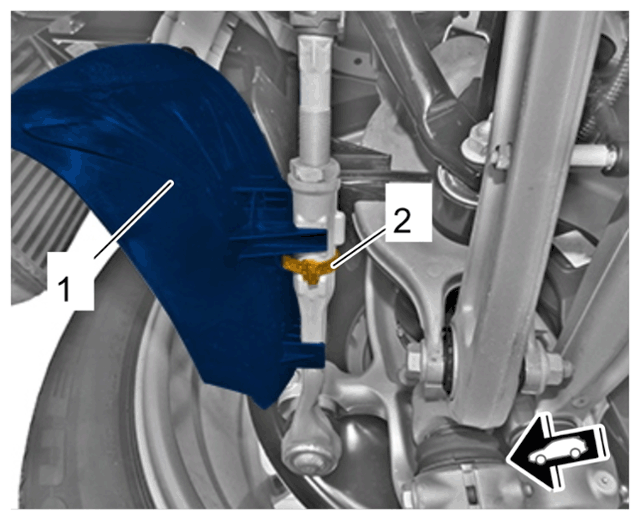

Air-guide element on tie rod

1. 2.1 Cut tie-wrap -2-  .
2. 2.2 Remove air guide for brake disc -1-  .

1. 3.1 Unscrew nut -2-  on joint pin for the tie-rod ball until it is flush with the upper edge of the joint pin.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for tie rod on wheel bearing housing

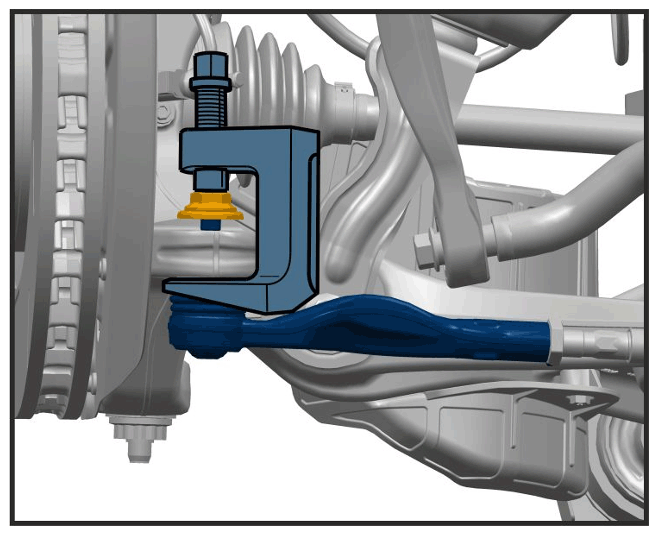

2. 3.2 Press off joint pin for tie-rod ball using > T40010A - ball joint puller  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

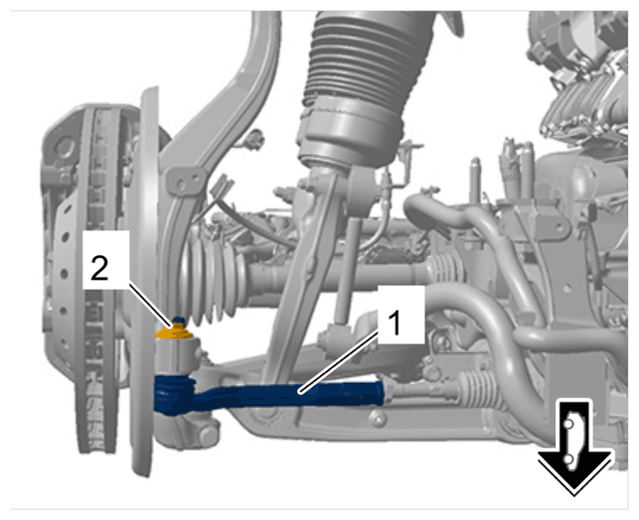

   Joint pin (shown on the 971)

3. 3.3 Unscrew nut from joint pin for the tie-rod ball.

Information

Mark the position of the tie-rod ball on the thread before unscrewing it from the tie rod.

Count the number of turns when unscrewing it (turns of tie-rod ball).

This avoids the need to perform an approximate adjustment of the steering trapeze during reassembly.

This does not  replace suspension alignment.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tie-rod ball (shown on the 971)

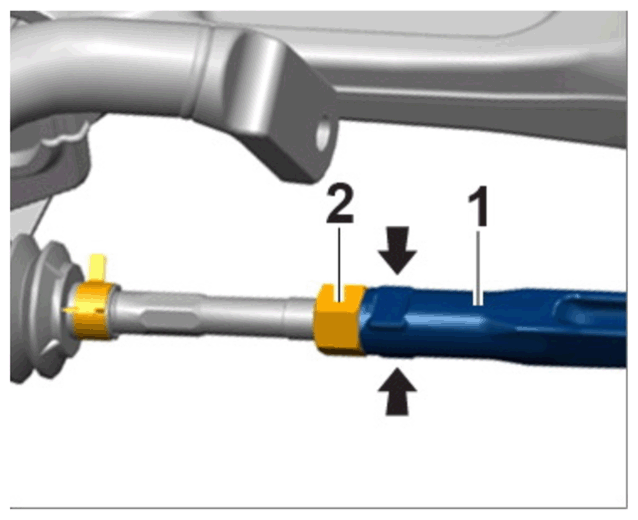

1. 4.1 Counter tie-rod ball -1-  at the flattened areas -Arrows-  using a suitable open-ended wrench.
2. 4.2 Unscrew lock nut -2-  .
