Removing Tie Rod
WARNING: This page is about a different variant/trim than selected.
Information
- If the tie rod is replaced, the marking for the old tie rod on the wheel side must be copied to the new tie rod.
- Remove tie rod -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

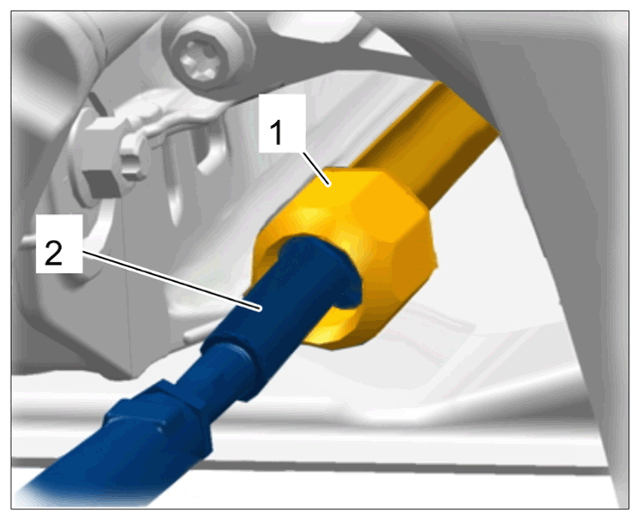

Tie rod ball joint
- 1.1 Position > V.A.G 1923 - open end spanner insert, a/f 38
on the octagon -1-
.
- 1.2 Loosen the octagon -1-
at the ball joint of the tie rod -2-
.
- 1.3 Remove tie rod -2-
.
