Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Nuts on housing for external power connection | Item 2 | Tightening torque | 3 Nm (2 ftlb.) | ||
|
Housing for positive terminal |
|||||

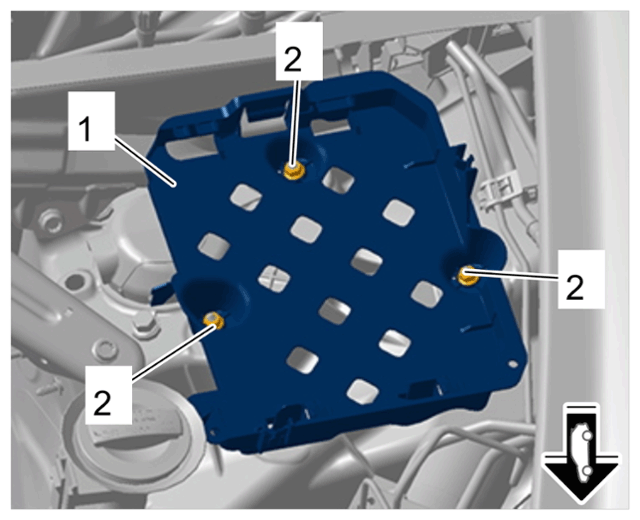

| Nuts securing DME control unit holder to body | Item 2 | Tightening torque | 3 Nm (2 ftlb.) | ||
|
DME control unit holder |
|||||
| Dome strut on A strut | Item 2: M8 internal multipoint screw x 16 | Tightening torque | 25 Nm (18.4 ftlb.) | ||
| Dome strut on suspension strut mount | Item 3: M8 internal multipoint screw x 16 | Tightening torque | 25 Nm (18.4 ftlb.) | ||
| Dome strut on suspension strut mount | Item 4: M8 internal multipoint screw x 30 | Tightening torque | 25 Nm (18.4 ftlb.) | ||
