Installing Strut

WARNING: This page is about a different variant/trim than selected.

Installation is performed in reverse order. Pay particular attention to the following:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

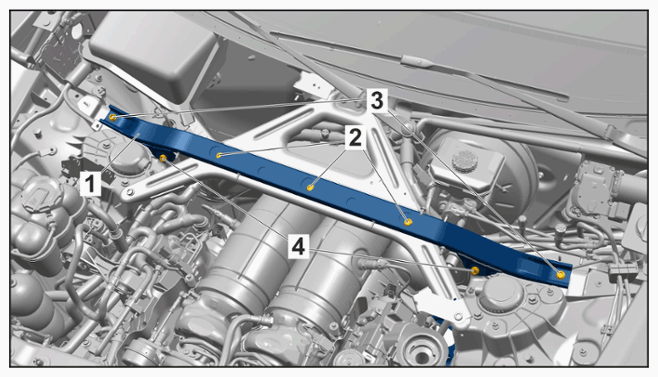

Strut
1. 1.1 Replace fastening parts on sound absorber.
2. 1.2 Tighten screw -2- .
  > Tightening torque 25 Nm (18.4 ftlb.)
3. 1.3 Tighten screw -3- .
  > Tightening torque 25 Nm (18.4 ftlb.)
4. 1.4 Tighten screw -4- .
  > Tightening torque 25 Nm (18.4 ftlb.)
5. 1.5 Tighten nuts on DME control unit holder.
  > Tightening torque 3 Nm (2 ftlb.)
6. 1.6 Tighten nuts on housing for external power connection.
  > Tightening torque 3 Nm (2 ftlb.)
