Installing Strut

WARNING: This page is about a different variant/trim than selected.

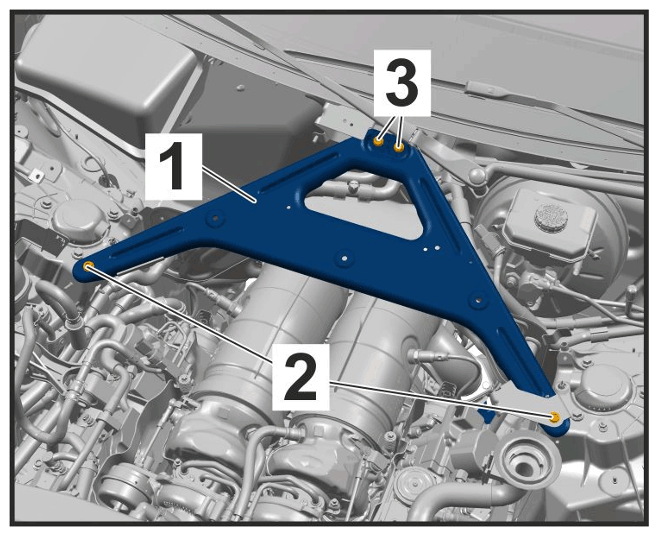

Install strut -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Strut (A-strut)
1. 1.1 Position strut -1- .
2. 1.2 Fit screws -2 and 3- .
3. 1.3 Tighten screws -2- .
  > Tightening torque 25 Nm (18.4 ftlb.)
4. 1.4 Tighten screws -3- .
  > Tightening torque 25 Nm (18.4 ftlb.)
