Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Loosen screw on drive shaft -1-  .

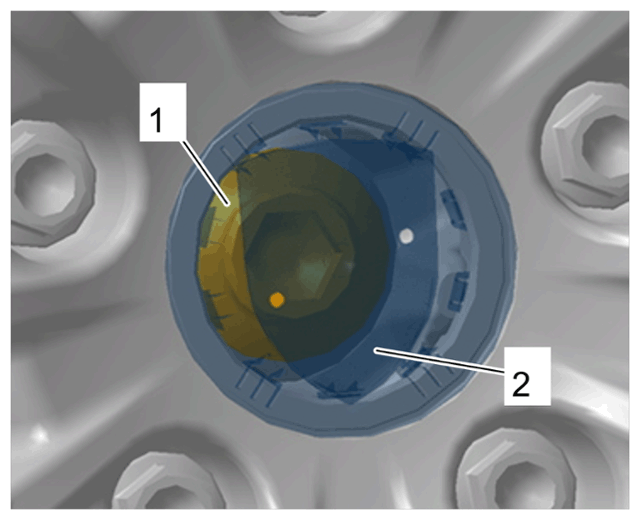

    G15259574Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Drive shaft screw

    1. 1.1 Pull off hub cap -2-  .
    2. 1.2 Loosen screw on drive shaft -1-  .
  2. Remove brake disc

    > 465019 REMOVING AND INSTALLING FRONT BRAKE DISC

  3. Loosen upper trailing arms -1 and 2-  .

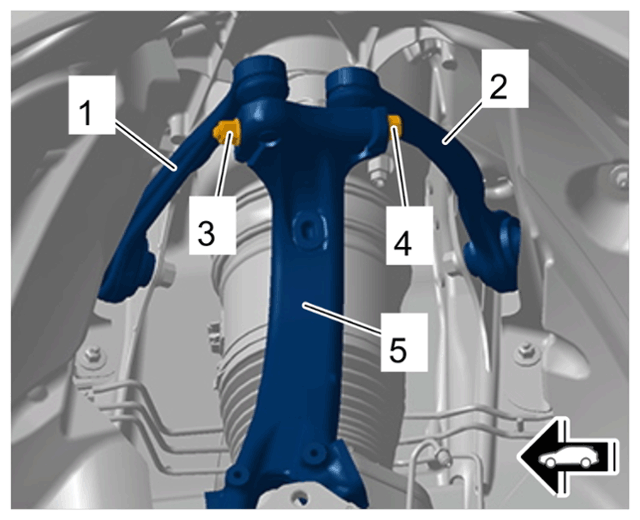

    G15259575Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Upper trailing arms on wheel bearing housing

    1. 3.1 Unscrew nut -3-  and counter at screw -4-  at the same time.
    2. 3.2 Remove screw -4-  from wheel bearing housing -5-  .
    3. 3.3 Lift both trailing arms -1 and 2-  up out of the wheel bearing housing -5-  .
  4. Remove front speed sensor

    > 451119 REMOVING AND INSTALLING FRONT SPEED SENSOR
