Subsequent Work

WARNING: This page is about a different variant/trim than selected.
  1. Install front brake disc.

    > Removing and installing front brake disc

  2. Install brake calliper.

    > Removing and installing front brake calliper

  3. Fit screw on drive shaft -1-  .

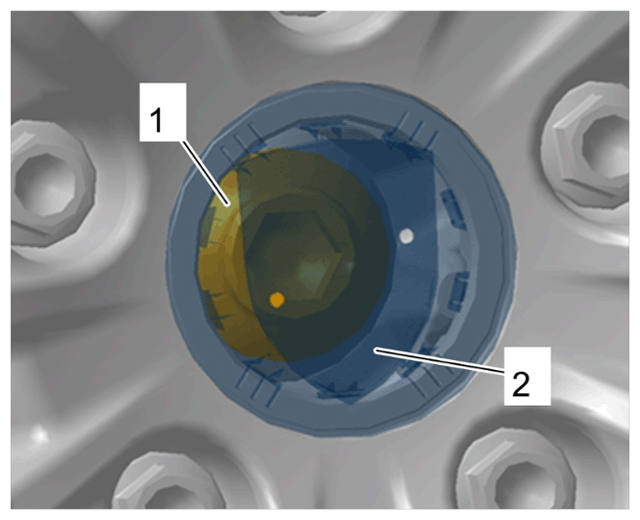

    G15259548Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Drive shaft screw

    1. 3.1 Replace screw for drive shaft -1-  .
    2. 3.2 Screw in and tighten new screw on drive shaft -1-  .

      > Initial tightening 200 Nm (148 ftlb.)

      > Final tightening + 180°

    3. 3.3 Fit hub cap -2-  .
