Removing Wheel Bearing Housing

WARNING: This page is about a different variant/trim than selected.
WARNING: Danger of objects or loads falling down
  • Risk of squashing or crushing
    • → Secure components to prevent them from falling down.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

  1. Remove brake cover panel -1-  .

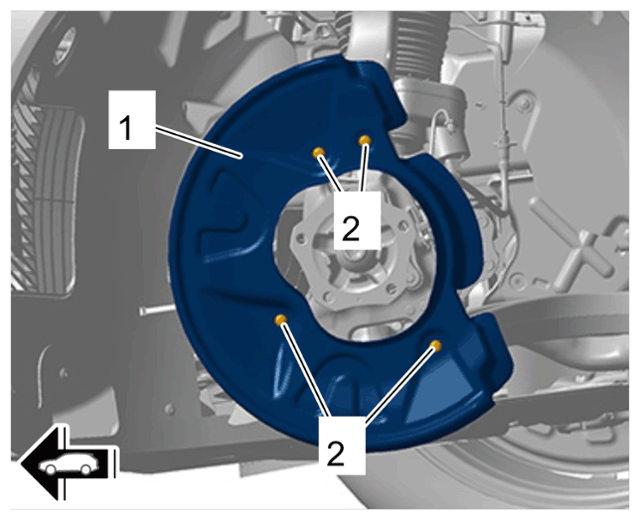

    G15259537Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Brake cover panel, front

    1. 1.1 Unscrew screws on brake cover panel -2-  .
    2. 1.2 Remove brake cover panel -1-  .
  2. Remove speed sensor -1-  .

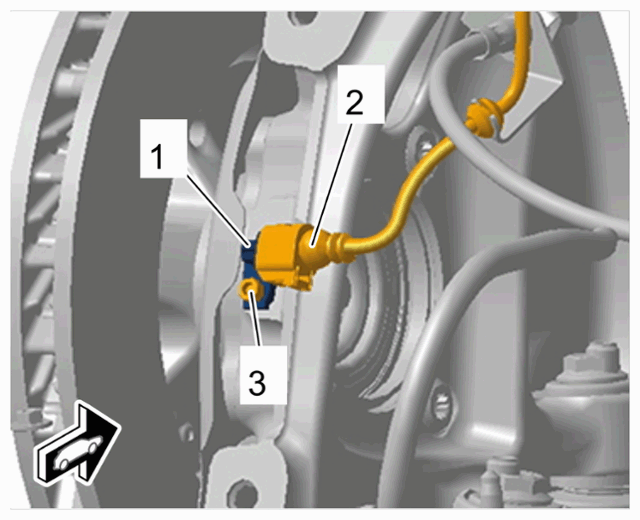

    G15259538Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Speed sensor

    1. 2.1 Release and disconnect electric plug connection -2-  .
    2. 2.2 Unscrew screw -3-  .
    3. 2.3 Pull out speed sensor -1-  .
  3. Remove sensor for body -1-  .

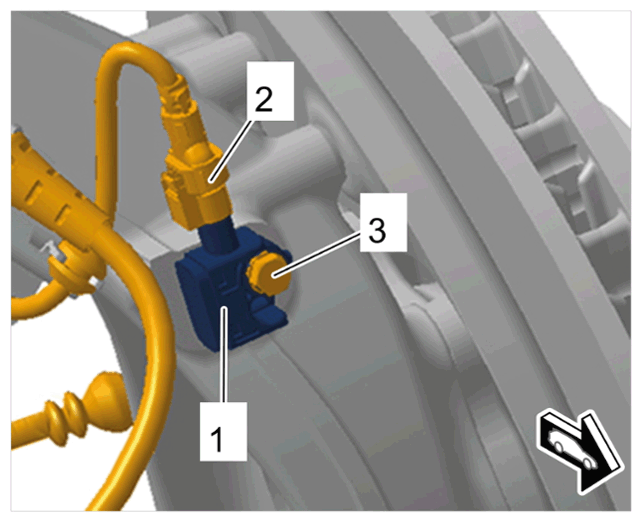

    G15259539Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Sensor for body

    1. 3.1 Release and disconnect electric plug connection -2-  .
    2. 3.2 Unscrew screw -3-  .
    3. 3.3 Remove sensor for body -1-  .
  4. Unscrew nut -2-  on joint pin for tie-rod ball -1-  until it is flush with the upper edge of the joint pin.
    G15259540Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for tie rod on wheel bearing housing

  5. Press tie-rod ball off the wheel bearing housing.

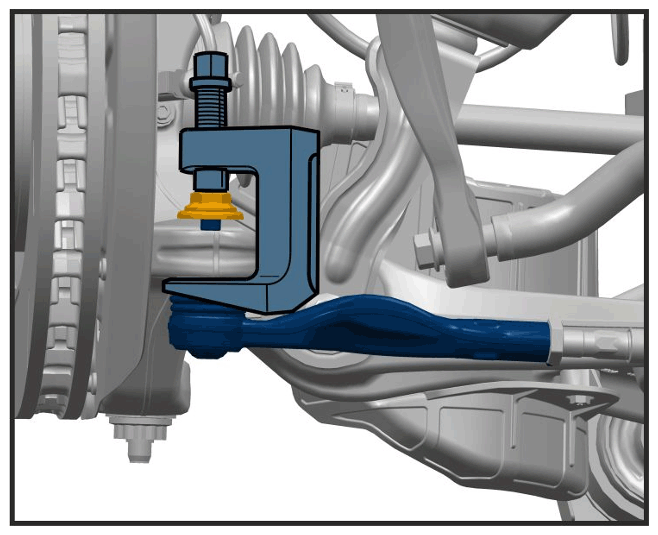

    G15259541Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Ball joint puller (main diagram)

    1. 5.1 > T40010A - Ball joint puller  must be positioned on the tie-rod ball. > Ball joint puller (main diagram)
    2. 5.2 Press tie-rod ball off the wheel bearing housing using > T40010 - ball joint puller  . > Ball joint puller (main diagram)
  6. Unscrew nut -2-  and remove tie-rod ball -1-  from wheel bearing housing.

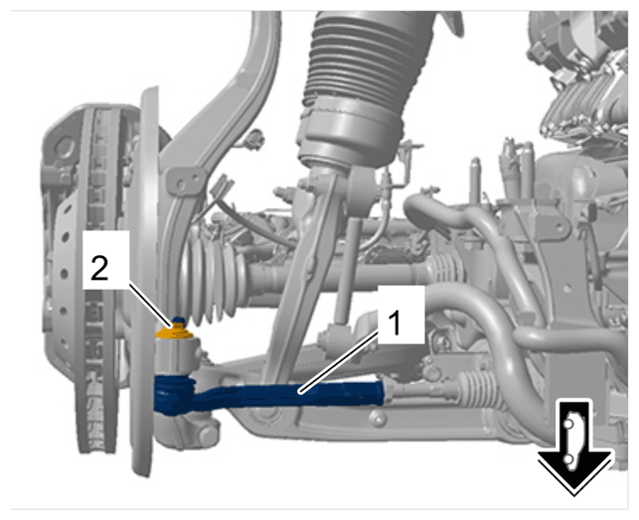

    G15259542Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for tie rod on wheel bearing housing

  7. Loosen upper trailing arms -1 and 2-  .

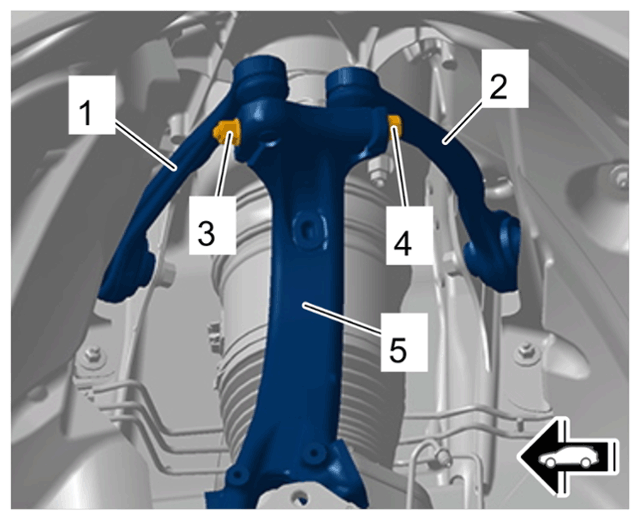

    G15259543Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Upper trailing arms on wheel bearing housing

    1. 7.1 Unscrew nut -3-  and counter at screw -4-  at the same time.
    2. 7.2 Remove screw -4-  from wheel bearing housing -5-  .
    3. 7.3 Lift both trailing arms -1 and 2-  up out of the wheel bearing housing -5-  .
  8. Detach control arm -1-  at the wheel bearing housing -2-  .

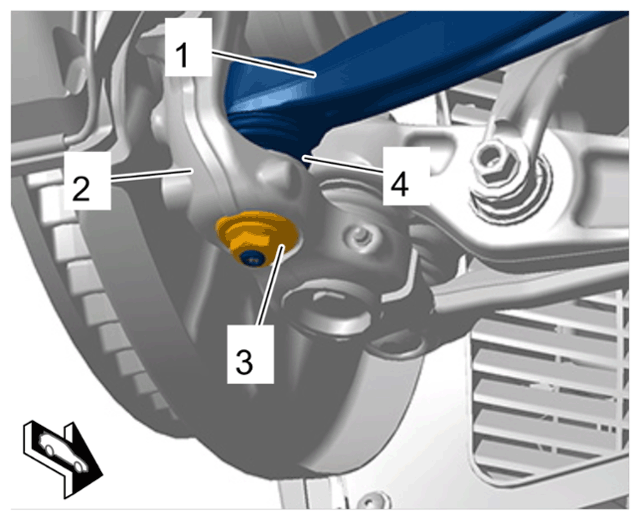

    G15259544Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Control arm at wheel bearing housing

    1. 8.1 Screw off nut on control arm joint pin -3-  .
    2. 8.2 Use > T10187 - ball joint puller  to press axle joint off the wheel bearing housing -2-  .
    3. 8.3 Guide control arm -1-  out of the wheel bearing housing -2-  .
  9. Remove drive shaft heat shield -1-  .

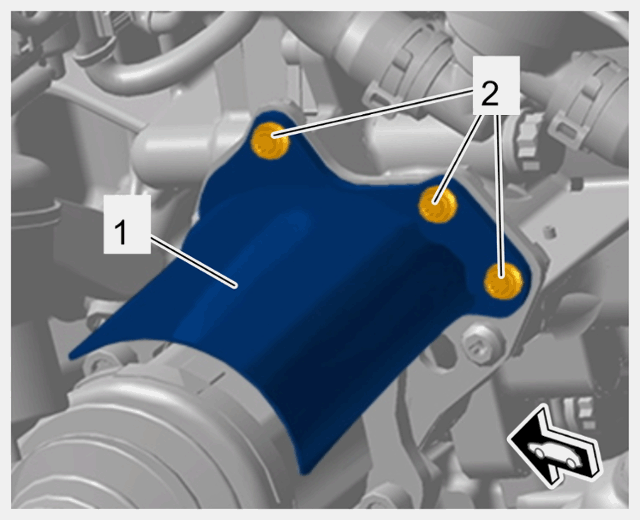

    G15259545Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Drive shaft heat shield

    1. 9.1 Unscrew screws on drive shaft heat shield -2-  and counter at the nuts.
    2. 9.2 Remove drive shaft heat shield -1-  .
  10. Remove drive shaft -1-  .

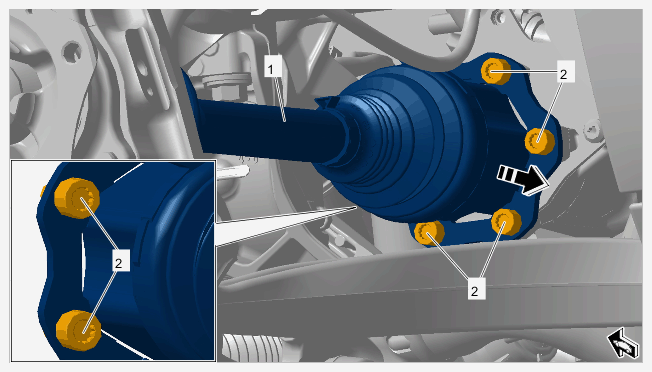

    Fig 1: Drive Shaft Component Location
    G15259546Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Drive shaft

    1. 10.1 Unscrew drive shaft screws -2-  .
    2. 10.2 Guide drive shaft -1-  to the rear on the transmission side -Arrow-  and pull it out of the wheel bearing housing.
    3. 10.3 Guide out and remove the drive shaft -1-  .
  11. Loosen lower trailing arm -1-  on wheel bearing housing -2-  .

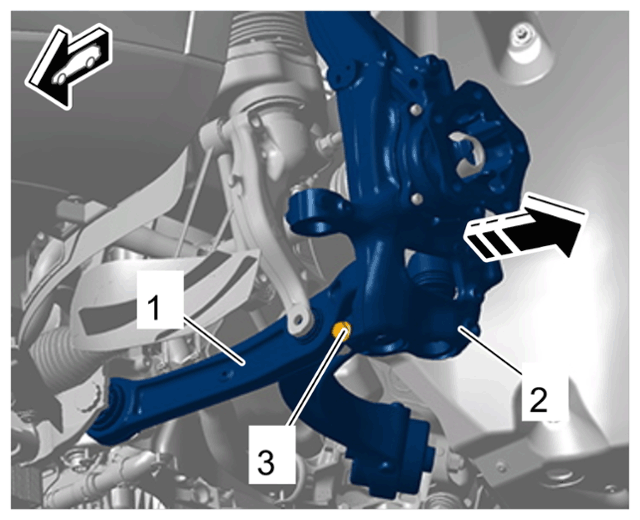

    G15259547Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wheel bearing housing

    1. 11.1 Unscrew clamping screw on lower axle joint -3-  .
    2. 11.2 Open up clamp using > 3424 - spreader  .
    3. 11.3 Pull wheel bearing housing -2-  off the lower axle joint and remove it. -Arrow-
