Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Loosen screw on drive shaft -1-  .

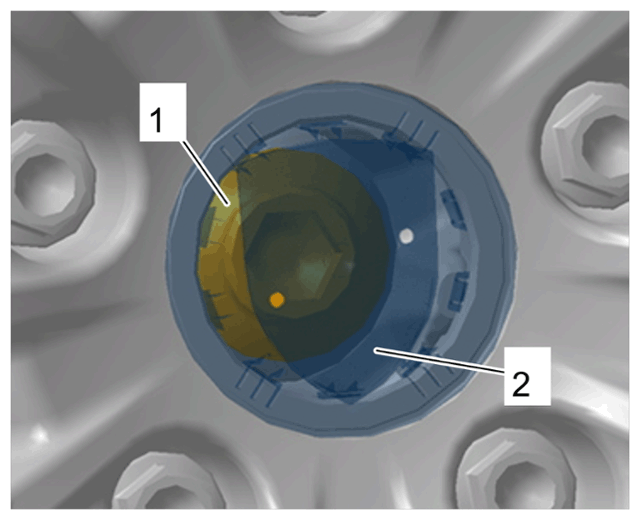

    G15259536Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Drive shaft screw

    1. 1.1 Pull off hub cap -2-  .
    2. 1.2 Loosen screw on drive shaft -1-  .
  2. Remove front brake disc.

    > Removing and installing front brake disc
