Disassembling Front Drive Shaft

WARNING: This page is about a different variant/trim than selected.
WARNING: Danger of objects or loads falling down
  • Risk of squashing or crushing
    • → Secure components to prevent them from falling down.
  1. Clamp drive shaft in the vice (use aluminum protective lows!).
  2. Remove hose clamp -1-  on the bellows on the wheel side and transmission side using a suitable tool.

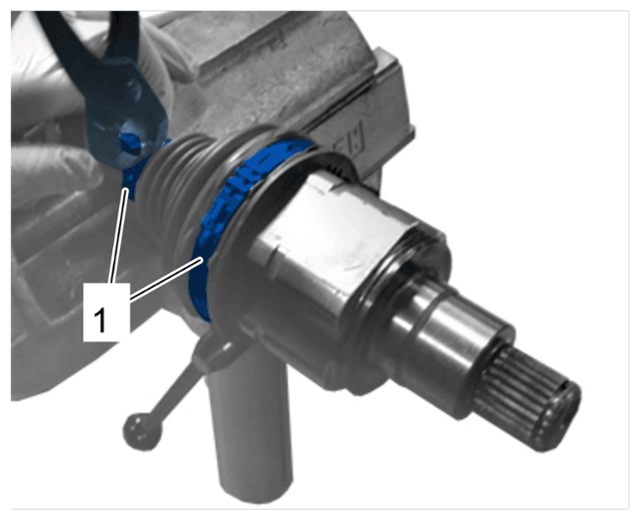

    G15259524Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Hose clamp (shown on joint on transmission side as an example)

  3. Pull housing of joint on the transmission side -1-  off the bellows -2-  .

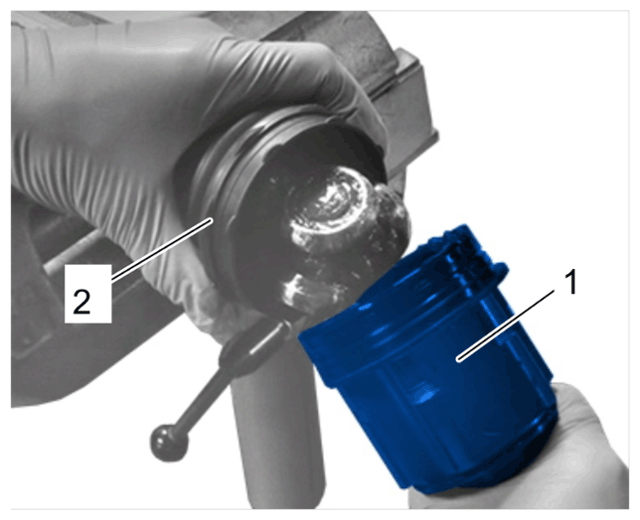

    G15259525Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Housing of joint on transmission side

  4. Remove outer circlip -1-  using suitable pliers.

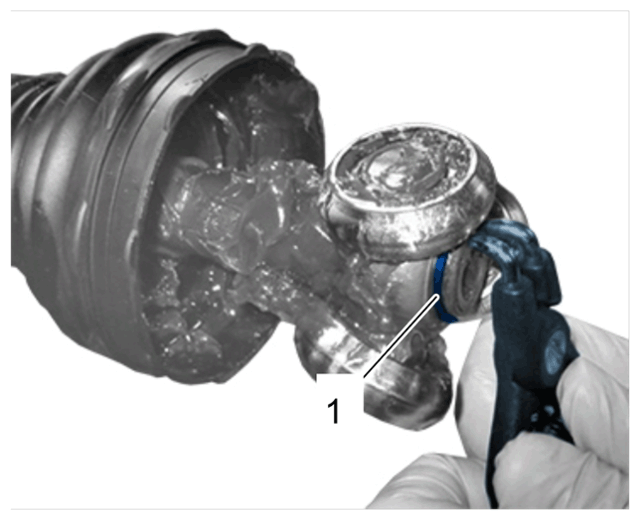

    G15259526Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Outer circlip

  5. Remove remaining grease from joint on the transmission side and drive shaft.

    Information

    Do not position brass mandrel on the 3 rollers of the joint!

  6. Remove the joint at the transmission side from the drive shaft using a brass mandrel by tapping it with a hammer all the way around.
  7. Pull both bellows off the drive shaft.
  8. Remove the joint at the wheel side using a brass mandrel by tapping hard with a hammer all the way around (position brass mandrel on the ball hub of the joint pin (star-shaped inner ring) -Arrow-  ).

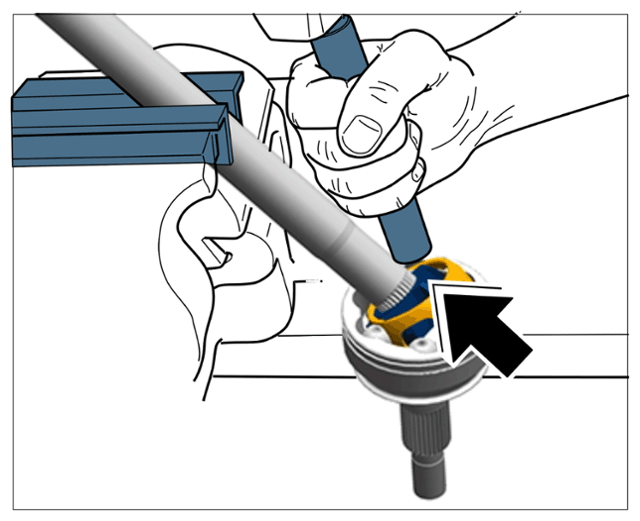

    G15259527Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing joint at the wheel side
